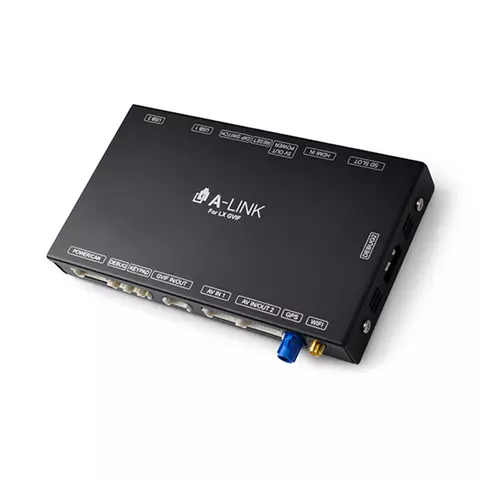

A-LINK Navigation Box on Android for Lexus LX/RX
Overview
Description
A-LINK navigation box is used to connect GPS navigation to OEM monitors of Lexus LX/RX cars. The navigation box works on Android 5.1.1 which allows users to expand the functionality with different applications from Google Play.
The box supports OEM joystick and aftermarket touch screen control. There is no need to install a video interface to connect this device as everything required for connection is in the package contents.
A-LINK navigation box has an HDMI input which provides image of higher quality.
Why do you need a navigation box?
It's quite simple, really: it will help you to quickly get your bearings in an unfamiliar place and find an optimal route to your destination. All information and hints about the route will be on your car monitor. There's no need to connect a smartphone and spoil the look of your car with cables or dock station.
Features
- Simple Plug&Play navigation connection to the OEM monitor
- Playback media content (supports HD video, 1080p)
- Convenient and easy-to-use integrated Lexus interface
- Simple connection without the need to install a video interface
- Supports any navigation software from Google Play
- Voice control (for Google Maps only)
- Multimedia playback on one of the frequencies from the OEM radio FM range (built-in FM modulator)
- Internet connection via Wi-Fi
- USB inputs for connecting external drives (up to 1 TB, NTFS, FAT)
- LVDS output
- HDMI input (720p)
- Input for an SD card (up to 32 GB)
- Navigation output resolution
- 800×480
- 480×234
Compatibility
| Model | Model years | |
|---|---|---|
| From | To | |
| RX (AL20) | 2015 | – |
| LX570 | ||
Technical Specifications
| System | CPU | NXP5430Q - 64bit - Cortex-A53 Octa-Core (1.6 GHz) |
| OS | Android 5.1.1 (Lollipop) | |
| RAM | DDR3 2 GB (800 MHz) | |
| ROM | 16 GB eMMC | |
| Supported systems | GPS | Ublox7 |
| Bluetooth | 4.0 | |
| Outputs | RGB |
800 × 480 |
| 480 ×234 | ||
| Stereo Audio | 1 | |
| Inputs | AV | 1 |
| Data | USB | USB 2.0 ×2 |
| Memory car input | SD/SDHC (up to 32 GB) | |
| General | Power | 12 -24 V DC |
| Operating temperature | -15oC ~ +70oC | |
| Dimensions | 167 mm × 95 mm × 22 mm |
Manuals
Package Contents
- A-LINK navigation box
- Connection cables
- GPS antenna
- Wi-Fi antenna
- External speaker
- Microphone
- Mounting elements
Note! Navigation software, touch screen panels, video interfaces and controllers are not included in the package content.
Note! Navigation box installation should be performed by a well-trained specialist. Otherwise, we are not liable for equipment damage or incorrect operation.
