Car Rear View Camera for Opel
Overview
Description

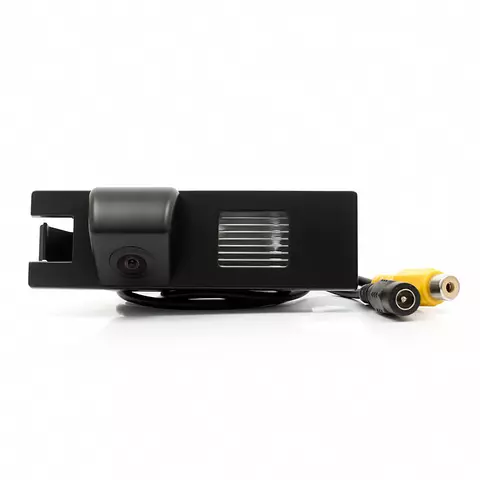

Car rear view camera in waterproof case has been designed especially for Opel / Buick Regal, starting from 2009 model year. Car rear view camera is one of the best parking assistance devices providing you wide field of view and colourful image. This reverse camera is designed to be connected to any car monitor with a composite yellow RCA jack.
For the sake of convenience of your car camera set usage you can buy car video quad splitter allowing you to connect and control up to four car cameras.
Note! This camera is not meant for constant connection to car's electrical system. Power supply should be organized in such way that the camera switches on only when it is necessary (e.g. when reversing). We also recommend using voltage converter 12 V to 7 V.
How to Connect a Car Camera
FAQ on Camera Connection
- How to connect an aftermarket rear view camera to an OEM display
- Common mistakes made during connection of the reverse camera power
Features
- Colourful image
- High resolution
- Waterproof design
- High or low temperature resistant
- Easy installation
- Automatic white balance
- Night vision
Technical Specifications
| Sensor | CMD |
| TV system | NTSC |
| Effective pixel | 656 × 492 |
| Resolution | 420 TVL |
| Viewing angle | 170° |
| Dimensions (W × H × D) | 103.5 mm × 31.5 mm × 50 mm |
| Sensor area | 5.961 mm × 4.276 mm |
| Video output | 1.0 Vp-p, 75 Ohm |
| S/N ratio | > 45 dB |
| Minimum illumination | 0.2 Lux |
| Case | Waterproof IP67 and IP68 |
| Operating voltage | 12 V ± 10% |
| Storage temperature | -30°C to +60°C |
| Operating temperature | -20°C to +60°C |
| Current consumption | 300 mA |
Compatibility
| Car brand | Model | Model years | |
|---|---|---|---|
| From | To | ||
| Opel | Astra H | 2009 | – |
| Corsa | |||
| Insignia | |||
| Vectra | |||
| Zafira | |||
| Buick | Regal | ||
Package Content
- Car rear view camera
- Power cable
- Video cable
Specifications
| Rear View Camera is compatible with the following models of Cars |
|
| Lighting |
|
| Place of Installation |
|
| Viewing angle |
|
| Colour |
|
