Entertainment system for Honda Civic

ID: 811476
ID: 811476 4.8 kg
DVD/DivX/MP4/VCD/CD/MP3 Entertainment system with built-in GPS system for Honda Civic.
Discontinued
Contact
sales team
Discontinued
Contact
sales team
Add to wishlist
Suggest your price
Impossible to estimate the shipping cost
Overview
Specifications
Delivery
Payment
Warranty
Overview

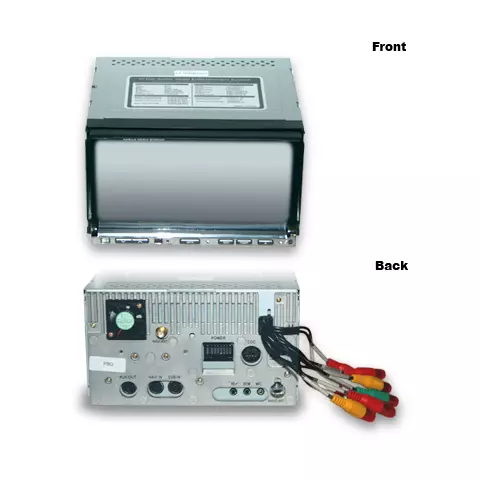

DVD/DivX/MP4/VCD/CD/MP3 entertainment system with built-in GPS navigator for Honda Civic.

Features:

  • Steering wheel control
  • Built-in GPS system
  • Built-in Bluetooth
  • Dual zone function: listening FM/CD and watching GPS map at once
  • 6.95" 16:9 TFT LCD
  • Graphic OSD with touch screen panel
  • Auto dimmer (standard/bright/soft/customer video mode)
  • Play DVD/DivX/MP4/VCD/CD/MP3
  • Built-in TV receiver
  • Built-in FM/AM/RDS radio
  • Built-in 4 x 50W amplifier
  • Super bass output 5.1
  • 1 A/V output (3 zone),  1 A/V input
  • Car camera input
  • Built-in anti-shock system
  • USB 1.1/USB 2.0 port

Special Functions:

  • Easy installation according to the original car design, without crack installation or wire cutting. The user should insert the socket directly into the original plug.
  • Listening to the radio and watching DVD/TV at the same time.

Specifications:

  • Power Supply: DC 12 V (11V-16 V)
  • Current consumption: less than 15A
  • Operating temperature range: -20°C to +70°C
  • Dimensions: 178(W) × 100(H) × 184(D) mm
  • Audio
    • Rated output: 4 channels × 23W (1KHz, 1﹪, 4 Ω)
    • Maximum power output: 4 channels × 50W
    • Rated speaker impedance: 4 Ω
    • Preamplifier  output voltage: 2Vrms
    • Preamplifier output impedance: <220 Ω
    • AV input/output section
    • Video: 1 Vpp (75 Ω)
    • Audio: 500 mVrms
  • Display:
    • Size: 6.95 inches
    • Display system: TFT LCD panel
    • Number of pixels: 336.960 pixels (480H × 234V × RGB)
    • Video system: PAL/NTSC
    • Brightness: 500 cd/m ²
  • DVD:
    • D/A conversion: 24 bits
    • Frequency range: 20 Hz-20 kHz ± 3 dB
    • Harmonic distortion: 0.05% (1 kHz)
    • Signal-to-noise ratio: ≥ 75 dB
    • Disc-type: CD, VCD, SVCD, JPG, DVD, MP4, MPEG, DivX
  • Radio:
    • FM radio
      • Frequency range: 87.5-107.9 MHz
      • Usable sensitivity: 10 dBμV(S/N=30dB)
      • S/N ratio: > 50dB
    • AM radio
      • Frequency range: 530-1720 kHz/531-1629 kHz
      • Usable sensitivity: 33 dBμ (S/N=20 dB)
  • TV Tuner:
    • Color system: NTSC, PAL-B/G, PAL-I, PAL-D/K, PAL-M, PAL-N
    • Tune: PLL tune system
    • Usable sensitivity: 41dBuV

GPS:

    • Power specification: DC 12 V
    • Working current: < 300 MA
    • Standby current: 0 MA
    • Working temperature range: from -20°C to +70°C
    • Operation system: Windows CE 4.2
    • CPU: Intel PXA255 processor, maximum frequency 400 MHz.
    • SDRAM/FLASH: 64 MB/64 MB
    • Number of channels: 8 channels
    • Data acquisition:
      • Cold boot time: 92 sec., average
      • Warm boot time: 37 sec., average
      • Hot boot time: 19 sec., average
    • Position  accuracy: <15 m
    • Update rate: 1 Hz
    • GPS antenna frequency: 1575.52 MHz
    • Length of antenna: 5 m
    • Voice indication: Intellectualized voice indication
    • Display output: CVBS+ S-VIDEO output (Resolution: 320 × 240) or RGB output simulation.
    • Audio output: Stereo output of CD tone.
    • SD card supported
    • Resolution: 418 × 234 (6.95″)
    • Control: touch control and remote control are supported

Maps:

    • Europe: Austria, Switzerland, Liechtenstein, Italy, Belgium, Netherlands, Luxemburg, France, Andorra, Monaco, Spain, Germany, Greece, Vatican, San Marino, Denmark, Finland, Norway, Sweden, Portugal, Gibraltar, Channel Islands, England, Ireland, Isle of Man, Northern Ireland, Scotland
    • Persian Gulf: Saudi Arabia, Oman, Bahrain, United Arab Emirates, Qatar, Kuwait
    • USA, Canada, Australia, Turkey, Russia, Brazil, Argentina, Chile
    • Menu & voice navigation languages: Arabic, English, Dutch, French, German, Italian, Portuguese, Spanish, Russian

Package contains:

Entertainment system for Honda Civic – 1pc.
Remote control – 1pc.
TV receiver box – 1pc.
Touchscreen pen – 2 pcs.
User manual – 1pc.
Audio cable – 1 pc.
USB connector – 1 pc.
Mounting spring – 1 pc.
GPS antenna – 1 pc.
Steering wheel connecton cable – 1 pc.
Trim plate – 1 pc.
Power cable – 1 pc.
AUX output cable – 1 pc.
Fixture elements

Package contains all elements needed for installation:

Package content part 1

Package content part 2

Package content part 3

Product specifications, appearance and package content may differ from those presented on the website and can be changed without notice. Please, contact sales manager before purchase.
All rights reserved. This material from car-solutions.com web site may not be published, rewritten or redistributed in whole or part without authorship indicated and backlinks provided.
Specifications
Multimedia System is compatible with the following models of Cars
  • Honda
Multimedia System is compatible with the following models of Cars
  • Honda Civic
