Navigation Box Based on CS9500 for Toyota / Lexus Before 2006 MY
sales team

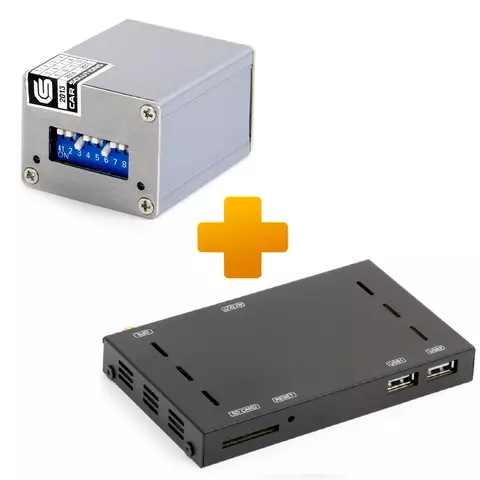

Navigation system for Toyota/Lexus car models released until 2006. Includes a CS9500 navigation box anda universal touch screen controller UTA Mini.
CS9500 navigation box is designed to connect navigation to the OEM monitors of Toyota/Lexus cars.
Universal UTA Mini Controller is designed for aftermarket navigation boxes adaptation. They also enable connected box control by OEM controls. After controller connection all OEM functions remain, sound is reproduced by OEM stereo system.
Navigation System on CS9500
Demonstration of Connected Devices Operation
Navigation System on CS9500
Features
- Connect navigation to the OEM monitor
- Play any audio and video content without converting
- Separate audio channels
- 1 channel to transmit navigation voice prompts to the external speaker
- 1 channel to transmit sound of the media content to the OEM audio system (sound is transmitted to the OEM audio system via AUX or another device)
- FM transmitter
- USB inputs
- Output navigation resolution
- 800×480
- 400×234
- Connect to the OEM antenna via special adapter
Navigation System on CS9500
Technical Specifications
System | Processor | TCC8801 2.12 GHz |
OS | WIN CE 6.0 R3 Core | |
RAM | DDR 2 512 MB | |
ROM | Nand Flash 512 MB | |
Language | English, Russian Korean, Chinese | |
GPS | Supported systems | GPS |
Chipset | U-Blox 6 | |
Outputs | RGB | 800 × 480 |
400 ×234 | ||
linear audio outputs | 2 | |
Data | USB | USB 1.1 |
USB 2.0 (for data storages) | ||
Memory card slot | SD | |
Dimensions | Without connectors | 130 mm × 80 mm × 18 mm |
Navigation System on CS9500
Compatibility
Supported Toyota Models
Toyota model | Model years | |
---|---|---|
From | To | |
Allex | 2001 | 2006 |
Allion | 2004 | 2006 |
Alphard | 2002 | 2005 |
Altezza | 2001 | 2005 |
Aristo | 2001 | 2005 |
Avalon Limited | 2001 | 2009 |
Avalon XL | 2001 | 2009 |
Avensis | 2003 | 2007 |
Brevis | 2001 | 2007 |
Caldina | 2003 | 2007 |
Camry | 2001 | 2006 |
Celica | 2001 | 2006 |
Century | 2001 | 2007 |
Corolla Runx | 2002 | 2006 |
Corolla Spacio | 2001 | 2007 |
Crown | 2001 | 2009 |
Estima | 2000 | 2006 |
Gaia | 2001 | 2004 |
Grand Hiace | 1999 | 2002 |
Granvia | 1999 | 2002 |
Harrier | 2000 | 2007 |
Highlander | 2004 | 2007 |
Highlander Hybrid | 2006 | 2007 |
Highlander Hybrid Limited | 2006 | 2007 |
Highlander Limited | 2004 | 2007 |
Highlander Sport | 2006 | 2007 |
Toyota model | Model years | |
---|---|---|
From | To | |
Ipsum | 2001 | 2007 |
Isis | 2004 | 2005 |
Kluger / Kluger V | 2000 | 2007 |
Land Cruiser | 2000 | 2007 |
Land Cruiser Prado | 2002 | 2008 |
Mark II Wagon Blit | 2001 | 2007 |
Mark X | 2004 | 2006 |
Nadia | 2001 | 2003 |
Noah | 2001 | 2007 |
Origin | 2000 | 2001 |
Porte | 2004 | 2006 |
Premio | 2004 | 2006 |
Previa | 2001 | 2006 |
Prius | 2000 | 2007 |
Progres | 2001 | 2007 |
Pronard | 2000 | 2003 |
Raum | 2003 | 2006 |
Reiz | 2005 | 2007 |
Regius | 1999 | 2002 |
Sienta | 2003 | 2006 |
Verossa | 2001 | 2004 |
Vista / Vista Ardeo | 2001 | 2003 |
Voxy | 2001 | 2007 |
WiLL Cypha | 2002 | 2005 |
Windom | 2001 | 2006 |
Wish | 2003 | 2009 |
Supported Lexus Models
Lexus model | Model years | |
---|---|---|
ES | 300 | 2002-2003 |
330 | 2004-2006 | |
GS | 300 | 2002-2006 |
430 | 2002-2006 | |
GX | 470 | 2003-2006 |
IS | 300 | 2002-2005 |
LX | 470 | 2003-2007 |
RX | 330 | 2004-2006 |
400h | 2006 | |
SC | 430 | 2002-2009 |
LS | 430 | 2002-2006 |
Navigation System on CS9500
Manuals
Navigation System on CS9500
Package Content
Note! Navigation box installation shall be performed by well-trained specialist. Otherwise, we are not liable for equipment damage or incorrect operation.
Navigation system for Toyota/Lexus car models released until 2006. Includes a CS9500 navigation box anda universal touch screen controller UTA Mini.
CS9500 navigation box is designed to connect navigation to the OEM monitors of Toyota/Lexus cars.
Universal UTA Mini Controller is designed for aftermarket navigation boxes adaptation. They also enable connected box control by OEM controls. After controller connection all OEM functions remain, sound is reproduced by OEM stereo system.
Navigation System on CS9500
Demonstration of Connected Devices Operation
Navigation System on CS9500
Features
- Connect navigation to the OEM monitor
- Play any audio and video content without converting
- Separate audio channels
- 1 channel to transmit navigation voice prompts to the external speaker
- 1 channel to transmit sound of the media content to the OEM audio system (sound is transmitted to the OEM audio system via AUX or another device)
- FM transmitter
- USB inputs
- Output navigation resolution
- 800×480
- 400×234
- Connect to the OEM antenna via special adapter
Navigation System on CS9500
Technical Specifications
System | Processor | TCC8801 2.12 GHz |
OS | WIN CE 6.0 R3 Core | |
RAM | DDR 2 512 MB | |
ROM | Nand Flash 512 MB | |
Language | English, Russian Korean, Chinese |
|
GPS | Supported systems | GPS |
Chipset | U-Blox 6 | |
Outputs | RGB |
800 × 480 |
400 ×234 | ||
linear audio outputs | 2 | |
Data | USB | USB 1.1 |
USB 2.0 (for data storages) | ||
Memory card slot | SD | |
Dimensions | Without connectors | 130 mm × 80 mm × 18 mm |
Navigation System on CS9500
Compatibility
Supported Toyota Models
Toyota model | Model years | |
---|---|---|
From | To | |
Allex | 2001 | 2006 |
Allion | 2004 | 2006 |
Alphard | 2002 | 2005 |
Altezza | 2001 | 2005 |
Aristo | 2001 | 2005 |
Avalon Limited | 2001 | 2009 |
Avalon XL | 2001 | 2009 |
Avensis | 2003 | 2007 |
Brevis | 2001 | 2007 |
Caldina | 2003 | 2007 |
Camry | 2001 | 2006 |
Celica | 2001 | 2006 |
Century | 2001 | 2007 |
Corolla Runx | 2002 | 2006 |
Corolla Spacio | 2001 | 2007 |
Crown | 2001 | 2009 |
Estima | 2000 | 2006 |
Gaia | 2001 | 2004 |
Grand Hiace | 1999 | 2002 |
Granvia | 1999 | 2002 |
Harrier | 2000 | 2007 |
Highlander | 2004 | 2007 |
Highlander Hybrid | 2006 | 2007 |
Highlander Hybrid Limited | 2006 | 2007 |
Highlander Limited | 2004 | 2007 |
Highlander Sport | 2006 | 2007 |
Toyota model | Model years | |
---|---|---|
From | To | |
Ipsum | 2001 | 2007 |
Isis | 2004 | 2005 |
Kluger / Kluger V | 2000 | 2007 |
Land Cruiser | 2000 | 2007 |
Land Cruiser Prado | 2002 | 2008 |
Mark II Wagon Blit | 2001 | 2007 |
Mark X | 2004 | 2006 |
Nadia | 2001 | 2003 |
Noah | 2001 | 2007 |
Origin | 2000 | 2001 |
Porte | 2004 | 2006 |
Premio | 2004 | 2006 |
Previa | 2001 | 2006 |
Prius | 2000 | 2007 |
Progres | 2001 | 2007 |
Pronard | 2000 | 2003 |
Raum | 2003 | 2006 |
Reiz | 2005 | 2007 |
Regius | 1999 | 2002 |
Sienta | 2003 | 2006 |
Verossa | 2001 | 2004 |
Vista / Vista Ardeo | 2001 | 2003 |
Voxy | 2001 | 2007 |
WiLL Cypha | 2002 | 2005 |
Windom | 2001 | 2006 |
Wish | 2003 | 2009 |
Supported Lexus Models
Lexus model | Model years | |
---|---|---|
ES | 300 | 2002-2003 |
330 | 2004-2006 | |
GS | 300 | 2002-2006 |
430 | 2002-2006 | |
GX | 470 | 2003-2006 |
IS | 300 | 2002-2005 |
LX | 470 | 2003-2007 |
RX | 330 | 2004-2006 |
400h | 2006 | |
SC | 430 | 2002-2009 |
LS | 430 | 2002-2006 |
Navigation System on CS9500
Manuals
Navigation System on CS9500
Package Content
Note! Navigation box installation shall be performed by well-trained specialist. Otherwise, we are not liable for equipment damage or incorrect operation.
