Navigation System for Toyota Touch&Go Based on CS9100 (Car Solutions Edition)

ID: 841734
ID: 841734 1.4 kg
Navigation system for Toyota cars with Touch & Go and Touch & Go Plus monitors based on CS9100 navigation box. Navigation image activation by OEM button, voice prompts playback via car speakers, drag and scroll function on the touch screen.
Discontinued
Contact
sales team
Discontinued
Contact
sales team
Add to wishlist
Suggest your price
Impossible to estimate the shipping cost
Overview
Specifications
Delivery
Payment
Warranty
Overview

Navigation system based on CS9100 box is aimed at expanding navigation functions of Toyota cars with Touch & Go and Touch & Go Plus monitors! You just connect this navigation box to the monitor and receive fully functional navigation with the required interface language and maps, and touch screen control. The device provides Plug&Play connection without damaging OEM wires.

*Note! MAP/Nav button on the monitor is the basic requirement for compatibility.

CS9100 navigation box supports software from Navitel, IGo2006, IGo8, Garmin and other programs operating under WIN CE 5.0. In case a new version of the navigation program is released, it can be easily updated by rewriting it on SD card

You can also connect CS9100 navigation box to Internet. For this purpose purchase 3G USB GPS Modem for it.

Compare CS9100/CS9200/CS9900/KD-900/Andromeda navigation boxes.

Navigation System for Toyota
Advantages

  • Navigation image activation by OEM button (double press Mute button)
  • Voice prompts playback via car speakers
  • Drag and scrolling functions on the touch screen

Navigation System for Toyota
Compatibility

Toyota Touch & Go / Touch & Go + Monitors

Toyota Touch & Go Monitor Toyota Touch & Go Monitor
Toyota Touch & Go Monitor Toyota Touch & Go Monitor


Toyota model Model Years Monitor
From To
Auris 2010 2014 Touch & Go
Touch & Go Plus
Auris Hybrid 2010 2014
Avensis 2011 2014
Camry 2011 2014
Camry Hybrid 2012 2014
Corolla 2011 2013
GT86 2012 2014
Highlander 2012 2014
Highlander Hybrid 2012 2014
Hilux 2011 2014
Matrix 2011 2014
Prius 2011 2014
Prius C 2012 2014
Prius MPV+ 2012 2014
Prius Plug-in Hybrid 2012 2014
RAV4 2010 2014
Tacoma 2012 2014
Venza 2013 2014
Verso 2009 2014
Verso S 2010 2014
Yaris 2011 2014
Yaris Hybrid 2012 2014

Navigation System for Toyota
Technical Specifications

System Processor ARM9 Samsung 2440 400 MHz
OS WIN CE 5.0
Language / localisation English / English (Russian)
Memory ROM 64 MB
RAM DDR 64 MB
Memory cards MMC, miniSD, SD, SDHC up to 16 GB
(depends on the manufacturer)
Video outputs RGB
supported resolutions:
480×234
RCA NTSC 3,58 MHz
Audio outputs RCA stereo
TS 3.5 mm 0.25 W dynamics socket
Data USB A type (for external devices 5 V / 1 A)
Control Touch screen via adapter (included in the package)
GPS Chipset MTK MT3329T
Channels 66
Frequency L1 1575,42 MHz
Sensitivity -165 dB
Reacquisition 1 s
Protocol GPGGA (1 time/1 s), GPGSA (1 time/5 s), GPGSV
(1 time /5 s), GPRMC (1 time /1 s), GPVTG (1 time/1 s),
(additionally GLL or MTK NMEA Command)
Hot/warm/cold start 1 s / 28 s /30 s
Antenna SMA, active
Power 10-30 V DC

Navigation System for Toyota
Manuals

Navigation Software Installation Tips

  • Default way for navigation software installation on memory card: Navi\Navi.exe
  • Navigation software settings:
    • GPS receiver COM port: COM1
    • GPS receiver rate: 9600
    • Video output resolution: 480×234

Navigation System for Toyota
Package Content

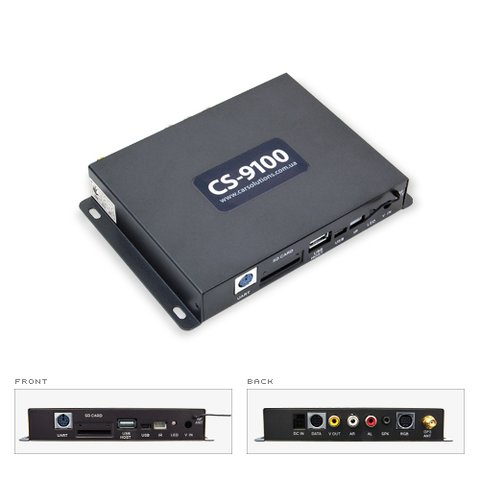

  • CS9100 navigation box
  • Universal touch screen adapter
  • AVP manager module
  • Remote control
  • GPS antenna
  • 4 GB SD memory card
  • Connection cables

* Navigation programs are not included in the package.

Note! Navigation unit and navigation software installation shall be performed by well-trained specialist. Otherwise, we are not liable for equipment damage or incorrect operation.

Product specifications, appearance and package content may differ from those presented on the website and can be changed without notice. Please, contact sales manager before purchase.
Note! Car Solutions is not liable for device incorrect operation in case of unauthorised OS upgrade. If you have problems with navigation box original OS operation, describe your situation on our forum, and our technical specialists will provide the solution.
All rights reserved. This material from car-solutions.com web site may not be published, rewritten or redistributed in whole or part without authorship indicated and backlinks provided.
Specifications
Navigation Box is compatible with the following models of Cars
  • Toyota
Navigation Box is compatible with Head Units
  • Touch&Go
Bluetooth Connection
  • No
Wi-Fi Connection
  • No
USB Ports
  • 1
ROM size
  • 64 MB
RAM size
  • 64 MB
GPS Receiver
  • MTK MT3329T
Processor frequency
  • 400 MHz
AV inputs
  • No
Operation System
  • Win CE 5.0
