Navigation System for Toyota Touch&Go Based on CS9900 (Car Solutions Edition)

ID: 841739
ID: 841739 1.5 kg

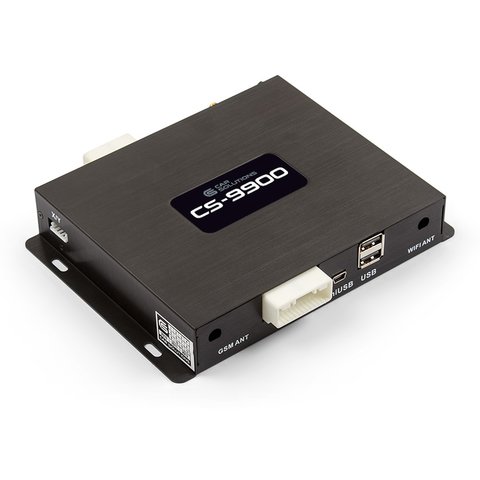

Navigation system for Toyota cars with Touch & Go and Touch & Go Plus monitors based on CS9900 navigation box. Works on Android platform. 3G modem and USB Wi-Fi adapter are included in the package.
Discontinued
Contact
sales team
Discontinued
Contact
sales team
Add to wishlist
Suggest your price
Impossible to estimate the shipping cost
Overview
Specifications
Video
Delivery
Payment
Warranty
Overview

Navigation system based on CS9900 box is aimed at expanding navigation functions of Toyota cars with Touch & Go and Touch & Go Plus monitors! You just connect this navigation box to the monitor and receive fully functional navigation with the required interface language and maps, and touch screen control. The device provides Plug&Play connection without damaging OEM wires.

The navigation box works under Android platform allowing you to expand the device functionality by various programs and application from Google Play.

*Note! MAP/Nav button on the monitor is the basic requirement for compatibility.

*Note! Before purchase, please, inform the manager about the manufacturer of your monitor. We will prepare the package for installation directly for your head unit.

Compare CS9100/CS9200/CS9900/KD-900/Andromeda navigation boxes.

Navigation System for Toyota Touch&Go
Advantages

  • Navigation image activation by OEM button (double press Mute button)
  • Voice prompts playback via car speakers
  • Drag and scrolling functions on the touch screen

Navigation System for Toyota Touch&Go
Additional Features

Navigation Box Functionality Expansion

  • Internet connection
    Connection to the Internet via 3G modem (included in the package). Wi-Fi connection with the help of USB adapter (included in the package).
  • USB devices connection. You can connect 4 USB devices with more than 500 mA current consumption without USB booster

Expanded Multimedia Features

You can install a lot of programs and applications (be it games or widgets) which would significantly expand multimedia features of your navigation box and car monitor.

OEM Antenna Connection

Specially developed adapter allows you to connect navigation box to OEM GPS antenna which provides high quality signal and easier installation.

Navigation System for Toyota Touch&Go
Compatibility

Toyota Touch & Go / Touch & Go + Monitors

Toyota Touch & Go Monitor Toyota Touch & Go Monitor
Toyota Touch & Go Monitor Toyota Touch & Go Monitor


Toyota model Model Years Monitor
From To
Auris 2010 2014 Touch & Go
Touch & Go Plus
Auris Hybrid 2010 2014
Avensis 2011 2014
Camry 2011 2014
Camry Hybrid 2012 2014
Corolla 2011 2013
GT86 2012 2014
Highlander 2012 2014
Highlander Hybrid 2012 2014
Hilux 2011 2014
Matrix 2011 2014
Prius 2011 2014
Prius C 2012 2014
Prius MPV+ 2012 2014
Prius Plug-in Hybrid 2012 2014
RAV4 2010 2014
Tacoma 2012 2014
Venza 2013 2014
Verso 2009 2014
Verso S 2010 2014
Yaris 2011 2014
Yaris Hybrid 2012 2014

How to Identify the Manufacturer of Touch&Go (Plus) Monitor

*Note! Before purchase, please, inform the manager about the manufacturer of your monitor. We will prepare the package for installation directly for your head unit.

Navigation System for Toyota Touch&Go
Technical Specifications

System Processor A8 / Cortex 1 GHz
OS Android 2.3.7
Language Multilanguage support
Memory ROM 4 GB
RAM DDR3 1 GB
Memory cards MMC, miniSD, SD, SDHC up to 32 GB
(depends on the manufacturer)
Video outputs RGB
supported resolutions:
480×234, 640×480, 800×480
RCA CVBS
Audio outputs RCA linear stereo
TS 3.5 mm 0.25 W dynamics socket (mono)
Audio input TS 3.5 mm for microphone
Data USB (4) A type (for external devices 5 V / 1 A)
Control Radio remote controller with touch panel
Touch screen panel Direct connection
Car OEM control buttons Via touch adapter
GPS Chipset MTK MT3329T
Channels 66
Frequency L1 1575,42 MHz
Sensitivity -165 dB
Reacquisition 1 s
Protocol GPGGA (1 time/1 s), GPGSA (1 time/5 s), GPGSV
(1 time /5 s), GPRMC (1 time /1 s), GPVTG (1 time/1 s),
(additionally GLL or MTK NMEA Command)
Hot/warm/cold start 1 s / 28 s /30 s
Antenna SMA, active
Power 10-30 V DC

Navigation System for Toyota Touch&Go
Package Content

  • CS9900 navigation box main board
  • Universal touch screen adapter
  • AVP manager module
  • 3G modem
  • USB Wi-Fi adapter
  • Remote control
  • GPS antenna
  • 8 GB memory card
  • Connection cables set

Note! Navigation box installation shall be performed by well-trained specialist. Otherwise, we are not liable for equipment damage or incorrect operation.

Product specifications, appearance and package content may differ from those presented on the website and can be changed without notice. Please, contact sales manager before purchase.
Note! Car Solutions is not liable for device incorrect operation in case of unauthorised OS upgrade. If you have problems with navigation box original OS operation, describe your situation on our forum, and our technical specialists will provide the solution.
All rights reserved. This material from car-solutions.com web site may not be published, rewritten or redistributed in whole or part without authorship indicated and backlinks provided.
Specifications
Navigation Box is compatible with the following models of Cars
  • Toyota
Navigation Box is compatible with Head Units
  • Touch&Go
Operation System
  • Android
Processor frequency
  • 1 GHz
GPS Receiver
  • MTK MT3329T
RAM size
  • 1 GB
ROM size
  • 1 GB
USB Ports
  • 4
Wi-Fi Connection
  • Yes
Bluetooth Connection
  • No
AV inputs
  • No
