Navigation System for Toyota Touch & Go (Panasonic) Based on CS9500

You may also like

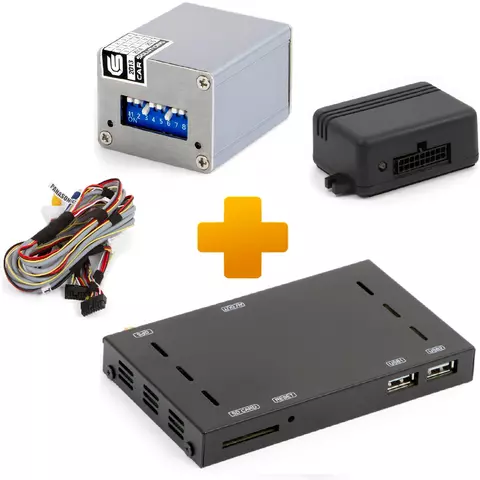

Navigation system for Toyota cars with Touch&Go (Panasonic) system. Includes a CS9500 navigation box and a connection kit.
CS9500 navigation box is designed to connect navigation to OEM monitors of Toyota cars.
Connection kit is used to connect the CS9500 navigation box to Toyota Touch & Go monitors manufactured by Panasonic.
Navigation System on CS9500
Work Demonstration
Navigation system for Toyota cars with Touch&Go (Panasonic) system. Includes a CS9500 navigation box and a connection kit.
CS9500 navigation box is designed to connect navigation to OEM monitors of Toyota cars.
Connection kit is used to connect the CS9500 navigation box to Toyota Touch & Go monitors manufactured by Panasonic.
Navigation System on CS9500
Work Demonstration
Navigation System on CS9500
Features
- Connect navigation to the OEM monitor
- Play any audio and video content without converting
- Separate audio channels
- 1 channel to transmit navigation voice prompts to the external speaker
- 1 channel to transmit sound of the media content to the OEM audio system (sound is transmitted to the OEM audio system via AUX or another device)
- FM transmitter
- USB inputs
- Output navigation resolution
- 800×480
- 400×234
- Connect to the OEM antenna via special adapter
Navigation System on CS9500
Technical Specifications
System | Processor | TCC8801 2.12 GHz |
OS | WIN CE 6.0 R3 Core | |
RAM | DDR 2 512 MB | |
ROM | Nand Flash 512 MB | |
Language | English, Russian Korean, Chinese |
|
GPS | Supported systems | GPS |
Chipset | U-Blox 6 | |
Outputs | RGB |
800 × 480 |
400 ×234 | ||
linear audio outputs | 2 | |
Data | USB | USB 1.1 |
USB 2.0 (for data storages) | ||
Memory card slot | SD | |
Dimensions | Without connectors | 130 mm × 80 mm × 18 mm |
Navigation System on CS9500
Compatibility
Toyota models | Model years | Monitor | |
---|---|---|---|
From | To | ||
Auris | 2010 | 2014 | Touch (& Go) Touch & Go Plus (Panasonic) |
Auris Hybrid | 2010 | 2014 | |
Avensis | 2011 | 2014 | |
Camry | 2011 | 2014 | |
Camry Hybrid | 2012 | 2014 | |
Corolla | 2011 | 2013 | |
GT86 | 2012 | 2014 | |
Highlander | 2012 | 2014 | |
Highlander Hybrid | 2012 | 2014 | |
Hilux | 2011 | 2014 | |
Matrix | 2011 | 2014 | |
Prius | 2011 | 2014 | |
Prius C | 2012 | 2014 | |
Prius MPV+ | 2012 | 2014 | |
Prius Plug-in Hybrid | 2012 | 2014 | |
RAV4 | 2010 | 2014 | |
Tacoma | 2012 | 2014 | |
Venza | 2013 | 2014 | |
Verso | 2009 | 2014 | |
Verso S | 2010 | 2014 | |
Yaris | 2011 | 2014 | |
Yaris Hybrid | 2012 | 2014 |
Note! MAP/Nav or APPS button on the monitor is the basic requirement for compatibility.
Navigation System on CS9500
Manuals
Navigation System on CS9500
Package Content
Note! Navigation box installation should be performed by a well-trained specialist. Otherwise, we are not liable for equipment damage or incorrect operation.
