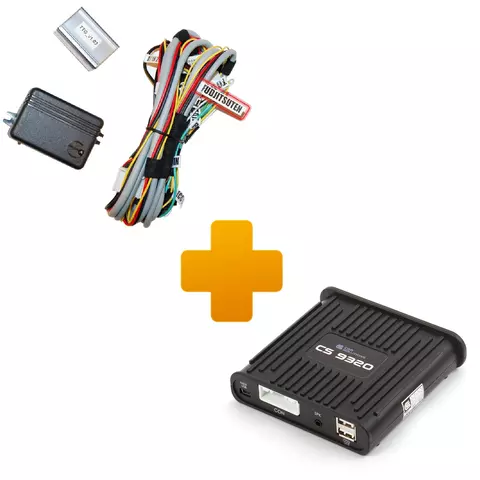

Navigation system for Toyota cars with Touch & Go system and FujitsuTen monitor. Includes a CS9320A navigation box and a cable set for connecting navigation boxes.
CS9320 navigation box is aimed at expanding navigation functionality of car OEM multifunctional displays. As a result, you receive fully functional navigation with the required interface language and maps, and touch screen control. The navigation box works on Android 4.1.1 platform allowing you to expand the device functionality by various programs and application from Google Play.
Navigation system for Toyota cars with Touch & Go system and FujitsuTen monitor. Includes a CS9320A navigation box and a cable set for connecting navigation boxes.
CS9320 navigation box is aimed at expanding navigation functionality of car OEM multifunctional displays. As a result, you receive fully functional navigation with the required interface language and maps, and touch screen control. The navigation box works on Android 4.1.1 platform allowing you to expand the device functionality by various programs and application from Google Play.
The navigation box uses simultaneously GPS and GLONASS systems for more accurate positioning.
The cable set for connecting navigation boxes will allow you to connect the CS9320A navigation box to the OEM Toyota Touch & Go monitors manufactured by FujitsuTen.
Navigation System on CS9320A
Features
- GPS and GLONASS systems usage
- Built-in Wi-Fi adapter
- Input for rear view camera with image activation when reversing
- Input for camera (optional DVR mode)
- USB inputs
- Connection to Internet using 3G modem* or Wi-Fi
- Connection to the OEM antenna via adapter
*Note! 3G modem is not included in the package.
Navigation System on CS9320A
Technical Specifications
| System | Processor | A9 dual core 1200 MHz |
| OS | Android 4.1.1 | |
| RAM | 512 MB | |
| ROM | 4 GB | |
| Language | Multilanguage support | |
| GPS | Supported systems | GPS |
| GLONASS | ||
| GALILEO | ||
| Chipset | MediaTek MT3333 | |
| Channels | 99 | |
| Sensitivity | -165 dBm | |
| Cold start | 28 s | |
| Warm start | 26 s | |
| Hot start | < 1s | |
| Video outputs | RGB |
up to 800 × 480 |
| HDMI | up to 1080p | |
| RCA | CVBS | |
| Video inputs | CVBS | for rear view camera |
| A/V | for camera | |
| Audio outputs | RCA | linear stereo |
| TS 3.5 mm | 0.25 W dynamics socket (mono) | |
| Audio inputs | TS 3.5 mm | for microphone |
| Data | USB | A type (for external devices 5 V / 1 A) |
| mini USB | A type | |
| Dimensions | Without connectors | 110 mm × 107 mm × 25 mm |
Navigation System on CS9320A
Compatibility
| Toyota model | Model year | Monitor | Manufacturer | |
|---|---|---|---|---|
| From | To | |||
| Auris | 2010 | 2014 | Touch & Go Touch & Go Plus |
FujitsuTen |
| Auris Hybrid | 2010 | 2014 | ||
| Avensis | 2011 | 2014 | ||
| Camry | 2011 | 2014 | ||
| Camry Hybrid | 2012 | 2014 | ||
| Corolla | 2011 | 2013 | ||
| GT86 | 2012 | 2014 | ||
| Highlander | 2012 | 2014 | ||
| Highlander Hybrid | 2012 | 2014 | ||
| Hilux | 2011 | 2014 | ||
| Matrix | 2011 | 2014 | ||
| Prius | 2011 | 2014 | ||
| Prius C | 2012 | 2014 | ||
| Prius MPV+ | 2012 | 2014 | ||
| Prius Plug-in Hybrid | 2012 | 2014 | ||
| RAV4 | 2010 | 2014 | ||
| Tacoma | 2012 | 2014 | ||
| Venza | 2013 | 2014 | ||
| Verso | 2009 | 2014 | ||
| Verso S | 2010 | 2014 | ||
| Yaris | 2011 | 2014 | ||
| Yaris Hybrid | 2012 | 2014 | ||
Navigation System on CS9320A
Package Content
| Navigation Box is compatible with the following models of Cars |
|
| Navigation Box is compatible with Head Units |
|
| Operation System |
|
| RAM size |
|
| USB Ports |
|
| Wi-Fi Connection |
|
| Bluetooth Connection |
|
| AV inputs |
|
| ROM size |
|
| GPS Receiver |
|
| Processor frequency |
|
