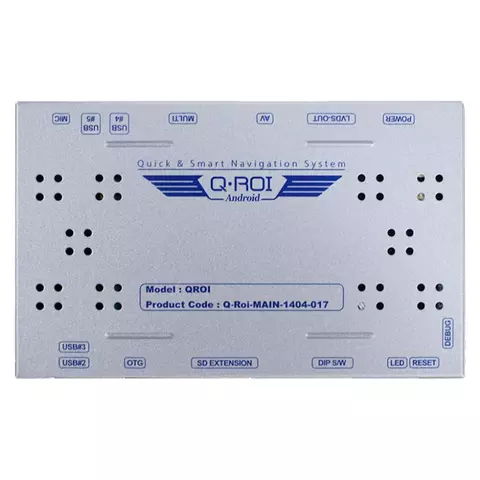

Q-ROI Navigation System on Android for BMW of 2011-2013 MY
sales team
Q-ROI navigation system with inputs for connecting rear view cameras and other aftermarket video sources to BMW 2011-2013 MY OEM monitors. Navigation system works on Android 4.2.2 platform allowing you to expand the device functionality by various programs and applications from Google Play.
This adapter is equipped with the active parking guidelines function (PAS).
Features
- Aftermarket navigation on your OEM monitor
- Connect rear view camera
- Play media content
- USB inputs
- Navigation output resolution
- 800×480
- 480×234
Q-ROI navigation system with inputs for connecting rear view cameras and other aftermarket video sources to BMW 2011-2013 MY OEM monitors. Navigation system works on Android 4.2.2 platform allowing you to expand the device functionality by various programs and applications from Google Play.
This adapter is equipped with the active parking guidelines function (PAS).
Features
- Aftermarket navigation on your OEM monitor
- Connect rear view camera
- Play media content
- USB inputs
- Navigation output resolution
- 800×480
- 480×234
Technical Specifications
| System: | CPU | Telechips TCC8930 (1GHz Cortex A9 DualCore) |
| OS | Android 4.2.2 Jelly Bean | |
| RAM | DDR3 1 GB | |
| ROM | 8 GB eMMC | |
| Language | Multilingual | |
| GPS | Supported systems | GPS |
| Chipset | SiRF | |
| Outputs | RGB |
800 × 480 |
| 480 × 234 | ||
| LVDS | 1 | |
| Inputs |
AV | 3 |
| Rear view camera connection | 1 | |
| Data | USB | USB 2.0 × 4 |
| OTG USB ×1 | ||
| Slot for memory card | SDHC (up to 64 GB) | |
| General | Power | 12 V |
| Supported type of touch screen | Resistive |
Compatibility
| Series | Body | Display size | Model Years | System | |
|---|---|---|---|---|---|
| From | To | ||||
| 1 Series | F20 | 6,5″ | 2011 | 2013 | iDrive NBT CIC |
| 8,8″ | |||||
| 10,2″ | |||||
| 3 Series | F30 / F31 | 6,5″ | |||
| 8,8″ | |||||
| 10,2″ | |||||
| 5 Series | F10 / F11 | 6,5″ | 2012 | ||
| 8,8″ | |||||
| 10,2″ | |||||
| 5 Series GT | F07 | 6,5″ | |||
| 8,8″ | |||||
| 10,2″ | |||||
| 6 Series | F12 / F13 | 6,5″ | |||
| 8,8″ | |||||
| 10,2″ | |||||
| 6 Series GC | 6,5″ | ||||
| 8,8″ | |||||
| 10,2″ | |||||
| 7 Series | F01 / F02 | 6,5″ | |||
| 8,8″ | |||||
| 10,2″ | |||||
| X3 | F25 | 6,5″ | |||
| 8,8″ | |||||
| 10,2″ | |||||
Note! In order to use the navigation system you also have to install a 6.5", 8.8" or 10.3" touch screen panel in your car.
Manuals
- Download user manual for Q-ROI navigation system
- Download installation manual for Q-ROI navigation system
Package Content
- Q-ROI navigation system
- Sub-board
- Connection cables
- Power cable
- 6 pin LVDS cable
- TOUCH IN cable
- AV/BT cable
- LCD cable
- Rear view camera cable
- Mode switch cable
- USB cable
- Microphone cable
- Multi cables
- GPS antenna
- External speaker
- Wi-Fi dongle
- 3G dongle
Note! Installation of the navigation system should be performed by a well-trained specialist. Otherwise, we are not liable for equipment damage or incorrect operation.
