Universal RGB High-End car video interface with PIP (picture in picture) function allows connecting external video sources such as DVD player, TV tuner, car ear view camera, etc. to built-in car monitor.
This video adapter fits most car models equipped with on-board monitors.
RGB High-End Car Video Interface
Features
- PIP (picture in picture) function. Available only in the navigation mode.
- Auto detection of NTSC, PAL and SECAM signals.
- Parking guideline function.
- "Sync On Green" supported (Auto detection).
- OSD menu (controlled by remote).
RGB High-End Car Video Interface
Technical Specifications
Input: multi video interface
- AV Input (External video source) x 3
- CVBS input (rear view camera) x 1
- Analog RGB input (car commander original monitor output) x 1
- Analog RGB input (navigation system output) x 1 (option)
Output
- CVBS output (Video out for headrest monitor installing) x 2
- Audio output x 1
- LCD output x 1
- Audio select output x 4
Power
- Input power: 8 V DC ∼ 24 V DC
- Max consumption power: 5 W
Switch input mode
- NAVI/CVBS1, 2 original mute functions: possible to make each input mute by operating Dip S/W.
- Possible to switch input mode with the remote control.
- Possible to switch input mode with the toggle switch.
- Rear view camera mode: rear camera mode is switched on when the car is reversing (it's impossible to switch rear view camera mode with the toggle S/W or remote control).
Dimensions: 150 mm × 95 mm × 21 mm
RGB High-End Car Video Interface
Manuals
RGB High-End Car Video Interface
Package Content
- Car video interface main board
- Remote unit control
- Cables set
- Power cable

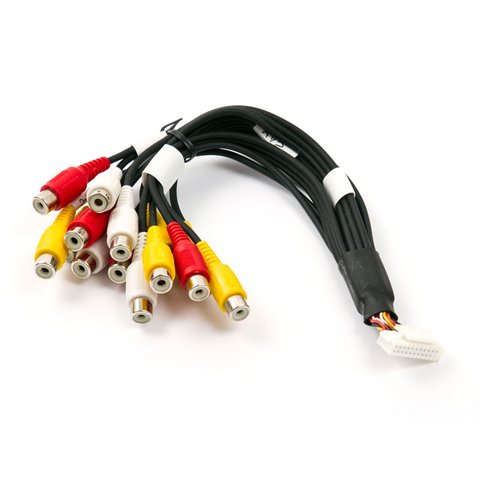

- AV cables bundle
- Mode switch cable with button
- IR cable for remote control unit
- LCD cable
- RGB Navi cable
If you have questions concerning this product or want to share your experience of its installation or application, visit
our forum.
*Product package content and appearance may differ from those presented on the website and depend on video interface version. Please, ask sales manager before purchase.
Note! The video interface must be installed only by the high skilled specialists. In case the device is installed incorrectly the car electronics can be damaged or go out of order.
We are not liable for damage or incorrect operation of the equipment in the case of improper installation.
