Video Inrterface for Nissan Juke 2013- MY

ID: 858330
ID: 858330 1 kg
Car video interface for Nissan Juke after 2013 model year. The adapter allows you to connect external video sources to the OEM monitor.
Discontinued
Contact
sales team
Discontinued
Contact
sales team
Add to wishlist
Suggest your price
Impossible to estimate the shipping cost
Overview
Specifications
Delivery
Payment
Warranty
Overview

Car video interface for Nissan Juke after 2013 model year. The adapter allows you to connect external video sources (navigation box, rear view camera, DVD, TV receiver, Android Smart TV box) to the OEM monitor.

If you have Nissan Juke before 2013 MY, you will need this video interface.

The most frequently asked questions about video interfaces.

Nissan Juke Video Interface
Technical Specifications

  • Inputs
    • A/V for external video sources × 2
    • CVBS for rear view camera
    • Analog RGB input for navigation system
    • Input for connection to the monitor
  • Outputs
    • Output for connection to the monitor
  • Power
    • Input power: 8 V DC ~ 16 V DC
    • Max. consumption power: 4 W
  • Modes switching:
    • remote mode switch button
    • mute video input by DIP switch
    • automatic display of the image from the connected video camera when reversing
  • Dimensions: 134 mm × 84 mm × 9 mm

Nissan Juke Video Interface
Compatibility

  • Nissan Juke after 2013 MY

Nissan Juke Video Interface
Manuals

Nissan Juke Video Interface
Package Content

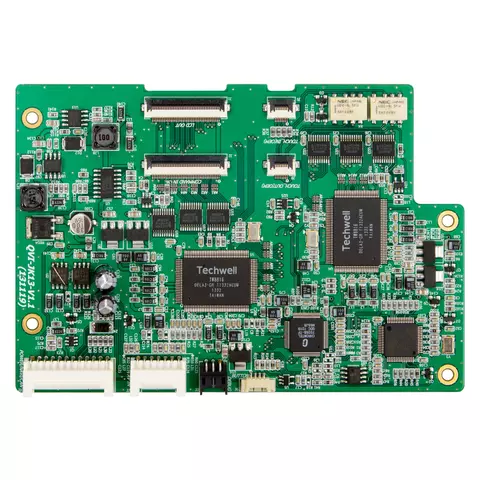

  • Video interface main module
  • Sub-board
  • Remote control with IR cable or OSD keypad

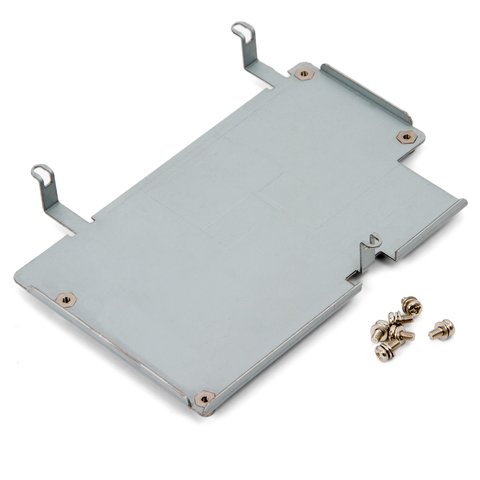

  • Bracket
  • Cables
    • Power cable
    • RGB cable
    • Rear view camera power cable
    • Touch out

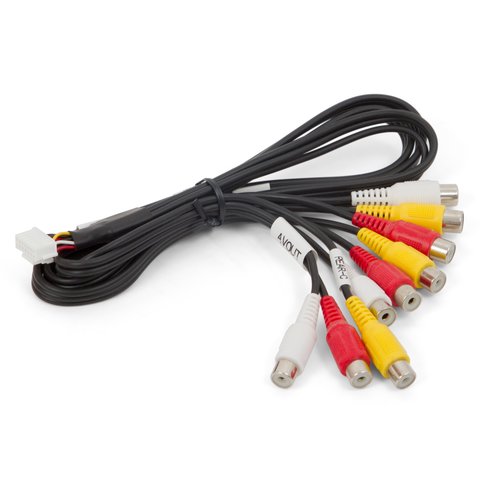

    • A/V cable
    • Remote modes switch button
    • FFC (4)
If you have questions concerning this product or want to share your experience of its installation or application, visit our forum.
*Product package content and appearance may differ from those presented on the website and depend on video interface version. Please, ask sales manager before purchase.
Note! The video interface must be installed only by the high skilled specialists. In case the device is installed incorrectly the car electronics can be damaged or go out of order.
We are not liable for damage or incorrect operation of the equipment in the case of improper installation.
All rights reserved. This material from car-solutions.com web site may not be published, rewritten or redistributed in whole or part without authorship indicated and backlinks provided.
Specifications
Video Interface is compatible with the following models of Cars
  • Nissan
Video Interface is compatible with the following models of Cars
  • Nissan Juke
Video Interface is compatible with Head Units
  • Connect 2
Built-in navigation
  • No
Touch screen control of the connected devices
  • Yes
Adaptive parking guidelines
  • No
Modes switch by OEM buttons
  • No
CAN bus support
  • Yes
DVD/HD/TV connection input
  • Yes
Navigation input
  • Yes
Rear view camera input
  • Yes
Delivery
Payment
Warranty
Video Inrterface for Nissan Juke 2013  MY - Short description
