Video Interface for Land Rover, Jaguar, Range Rover of 2012-2014 MY
Overview
Description
Specifications
Delivery
Payment
Warranty
Discontinued
Overview
1 kg Warranty: 12 months
Connect navigation, rear view camera and other additional video sources. Built-in parking assistance function (PAS). Read more
Description

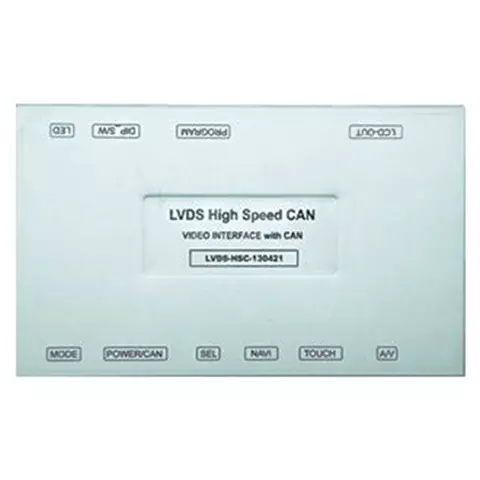

Using this car video interface you will be able to connect additional video sources, such as, navigation boxes, rear view cameras, to the OEM monitor. It is designed for Land Rover, Jaguar, Range Rover cars.
The video interface is equipped with the active parking guidelines (PAS) function.
Video Interface for Range Rover
Technical Specifications
- Inputs
- RGB input for connecting navigation
- Input for connecting a rear view camera
- A/V input × 2
- Outputs
- CVBS outputs× 2
- Audio output
- LVDS output
- Mode switching
- by original button through CAN (only when CAN wires are connected)
- Possibility to skip each input source by adjusting DIP switch
- Power
- Input voltage: 8 V DC ~ 24 V DC
- Maximum consumed power: 12 W
Video Interface for Range Rover
Compatibility
| Brand | Model | Model year | |
|---|---|---|---|
| From | To | ||
| Jaguar | XF/XJL | 2012 | 2014 |
| Land Rover | Discovery 4 | ||
| Freelander 2 | |||
| Range Rover | Evoque | ||
| Sport | |||
| Vogue | |||
The photo is provided for reference only. Appearance of the control panel and monitor may slightly differ depending on the car model.
Video Interface for Range Rover
Manuals
Video Interface for Range Rover
Package Content
- Video interface
- OSD keypad
- TOUCH board
- Sub-board
- Cable set:
- RGB NAVI cable
- LVDS cable
- A/V cable
- Power cable
- FFC cable
- Touch FFC cable
- Touch cable
If you have questions concerning this product or want to share your experience of its installation or application, visit our forum.
*Product package content and appearance may differ from those presented on the website and depend on video interface version. Please, ask sales manager before purchase.
Note! The video interface must be installed only by the high skilled specialists. In case the device is installed incorrectly the car electronics can be damaged or go out of order.
We are not liable for damage or incorrect operation of the equipment in the case of improper installation.
We are not liable for damage or incorrect operation of the equipment in the case of improper installation.
All rights reserved. This material from car-solutions.com web site may not be published, rewritten or redistributed in whole or part without authorship indicated and backlinks provided.
Specifications
| Video Interface is compatible with the following models of Cars |
|
| Touch screen control of the connected devices |
|
| Adaptive parking guidelines |
|
| Modes switch by OEM buttons |
|
| CAN bus support |
|
| Navigation input |
|
| DVD/HD/TV connection input |
|
| Rear view camera input |
|
| Built-in navigation |
|
