Video Interface with HDMI for Hyundai Equus of 2016– MY

id: 868554
Video Interface with HDMI for Hyundai Equus of 2016– MY
Overview
Description
Specifications
Delivery
Payment
Warranty
Discontinued
Contact
sales team
Overview
Rate product
1 kg Warranty: 12 months
Allows connection of additional video sources, such as, a rear view camera. Equipped with HDMI inputs and active parking guidelines function (PAS). Read more
Discontinued
Contact
sales team
Discontinued
Contact
sales team
Impossible to estimate the shipping cost
Description

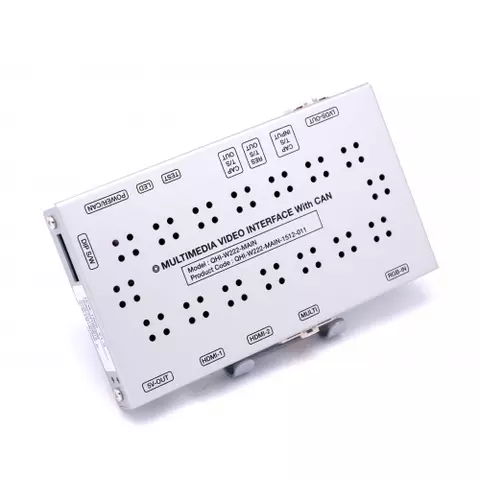

Car video interface allows you to connect additional video devices, such as navigation boxes, smartphone mirroring adapters or rear view cameras to the OEM car monitor. This is an exclusive video interface for Hyundai Equus.

This video adapter has HDMI input which allows you to connect aftermarket navigation and video sources via HDMI, which in its turn offers image of higher quality.

The most frequently asked questions about video interfaces.

Video Interface for Hyundai
Main Features

  • Active parking guidelines (PAS)
  • Support of PDC function (in connection with OEM parktronic system)
  • Automatic display of the image from the rear view or front view camera (depends on the gear)
  • Switch between connected devices using OEM buttons

Video Interface for Hyundai
Technical Specifications

  • Inputs
    • RGB input for navigation × 1
    • AV × 1
    • HDMI × 2
    • CVBS × 1 (for rear view camera)
    • CVBS × 1 (for front view camera)
  • Outputs
    • LCD output
  • Mode switching
    • OEM button through CAN bus (only if CAN wiring is connected)
    • possible to switch between AV sources with DIP S/W
    • with remote control or mode switch button
  • General
    • Output voltage: 8 V DC ~ 18 V DC
    • Maximum consumed power: 5 W
  • Dimensions
    • 140 mm × 90 mm × 18 mm

Video Interface for Hyundai
Compatibility

Brand Model Model years
From To
Hyundai Equus 2016


Hyundai head unit

The photo is provided for reference only. Appearance of the control panel and monitor may slightly differ depending on the car model.

Video Interface for Hyundai
Manuals

Video Interface for Hyundai
Package Content

  • Video interface
  • Sub-board
  • Remote control
  • Cable set:
    • Power cable
    • LVDS cable – 2 pc.
    • MULTI cable
    • FFC cable
    • RGB cable
    • TOUCH OUT cable
    • TOUCH IN cable
    • IR cable
    • Cable with mode switch button
If you have questions concerning this product or want to share your experience of its installation or application, visit our forum.
*Product package content and appearance may differ from those presented on the website and depend on video interface version. Please, ask sales manager before purchase.
Note! The video interface must be installed only by the high skilled specialists. In case the device is installed incorrectly the car electronics can be damaged or go out of order.
We are not liable for damage or incorrect operation of the equipment in the case of improper installation.
All rights reserved. This material from car-solutions.com web site may not be published, rewritten or redistributed in whole or part without authorship indicated and backlinks provided.
Specifications
Video Interface is compatible with the following models of Cars
  • Hyundai
  • Hyundai Equus
Touch screen control of the connected devices
  • Yes
Adaptive parking guidelines
  • Yes
Modes switch by OEM buttons
  • Yes
CAN bus support
  • Yes
Navigation input
  • Yes
DVD/HD/TV connection input
  • Yes
Rear view camera input
  • Yes
Built-in navigation
  • No
