Video Interface with HDMI for Land Rover and Jaguar of 2016– MY

ID: 868552
ID: 868552 1.25 kg
Allows connection of additional video sources, such as, a rear view camera. Equipped with HDMI inputs. Supported head units: InControl Touch.
Discontinued
Find substitute
Discontinued
Find substitute
Add to wishlist
Suggest your price
Impossible to estimate the shipping cost
Overview
Specifications
Substitution
Delivery
Payment
Warranty
Overview

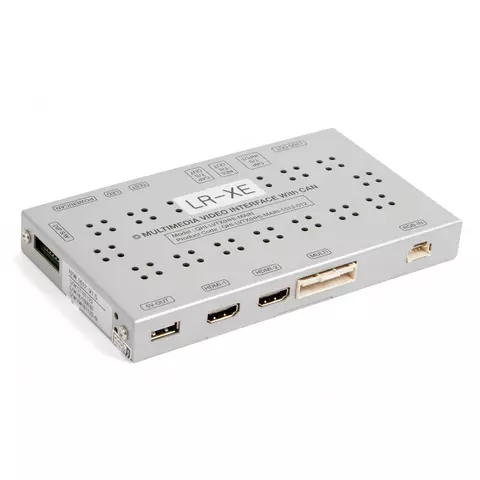

Car video interface allows you to connect additional video devices, such as navigation boxes or rear view cameras to the OEM car monitor. This adapter fits Land Rover and Jaguar cars.

This video adapter has HDMI input which allows you to connect aftermarket navigation and video sources via HDMI, which in its turn offers image of higher quality.

Compatible with the following navigation boxes:

Note! RES T/S OUT is not used.

Video Interface for Land Rover
Main Features

  • Support of PDC function (in connection with OEM parktronic system)
  • Automatic display of the image from the rear view or front view camera (depends on the gear)
  • Switch between connected devices using OEM buttons

Video Interface for Land Rover
Technical Specifications

  • Inputs
    • RGB input for navigation × 1
    • AV × 1
    • HDMI × 2
    • CVBS × 1 (for rear view camera)
    • CVBS × 1 (for front view camera)
  • Outputs
    • LCD output
  • Mode switching
    • OEM button through CAN bus (only if CAN wiring is connected)
    • possible to switch between AV sources with DIP S/W
    • with remote control or mode switch button
  • General
    • Output voltage: 8 V DC ~ 18 V DC
    • Maximum consumed power: 5 W
  • Dimensions
    • 140 mm × 90 mm × 18 mm

Video Interface for Land Rover
Compatibility

Brand Model Model years System Monitor size
From To
Jaguar F-Pace 2016 InControl Touch (Apix2 of 3rd generation) 8″
XE
XF
Land Rover Discovery Sport


Jaguar head unit

The photo is provided for reference only. Appearance of the control panel and monitor may slightly differ depending on the car model.

Video Interface for Land Rover
Manuals

Video Interface for Land Rover
Package Content

  • Video interface
  • Sub-board
  • Remote control
  • Cable set:

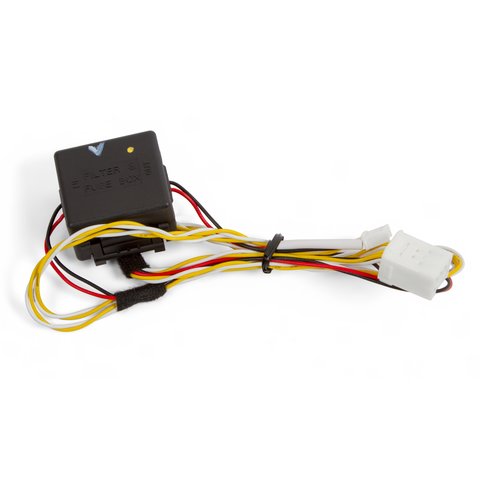

    • Power cable
    • LVDS cable – 2 pc.

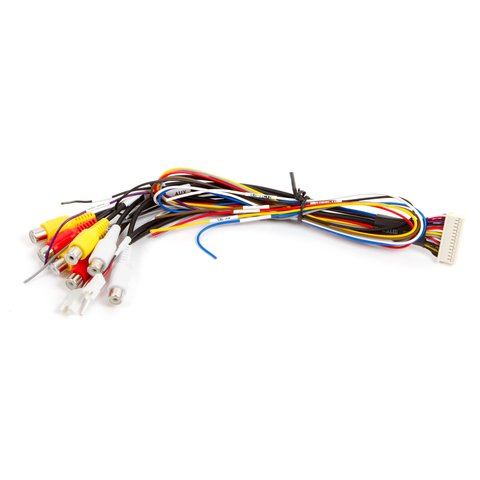

    • MULTI cable
    • RGB cable
    • TOUCH OUT cable
    • REAR cable
    • IR cable
    • Cable with mode switch button
If you have questions concerning this product or want to share your experience of its installation or application, visit our forum.
*Product package content and appearance may differ from those presented on the website and depend on video interface version. Please, ask sales manager before purchase.
Note! The video interface must be installed only by the high skilled specialists. In case the device is installed incorrectly the car electronics can be damaged or go out of order.
We are not liable for damage or incorrect operation of the equipment in the case of improper installation.
All rights reserved. This material from car-solutions.com web site may not be published, rewritten or redistributed in whole or part without authorship indicated and backlinks provided.
Specifications
Video Interface is compatible with the following models of Cars
  • Land Rover
  • Jaguar
  • Range Rover
Video Interface is compatible with the following models of Cars
  • Jaguar XF
  • Jaguar XE
  • Jaguar F-Pace
  • Land Rover Discovery Sport
Built-in navigation
  • No
Touch screen control of the connected devices
  • Yes
Adaptive parking guidelines
  • Yes
Modes switch by OEM buttons
  • Yes
CAN bus support
  • Yes
DVD/HD/TV connection input
  • Yes
Navigation input
  • Yes
Rear view camera input
  • Yes
