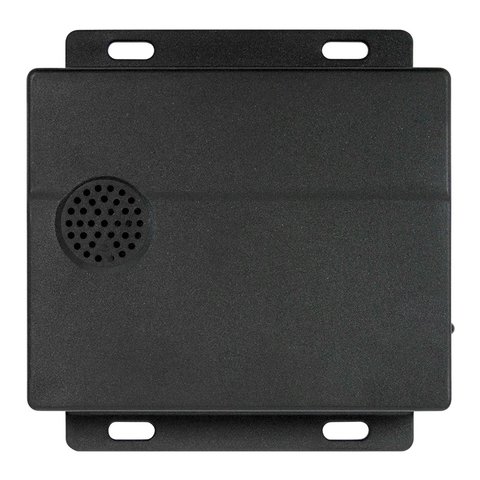

Intelligent Parking Assist System
Overview
Description
Parking assist system is designed to ensure safe and comfortable backwards parking in combination with car rear view camera and build-in car monitor (not included in the package).
The device works by reading CAN bus data from automotive electronic stability control system (magnitude of the steering wheel rotation, speed and lateral acceleration) and thus generates backward parking trajectory and integrates it into car rear view camera image.
Intelligent parking assist system fits most cars with ESC systems.*
Parking Assist System
Features
- Plug & Play connection via OBD-II port
- Directly reads steering wheel data from the original car computer
- Shows precise and reliable parking guidelines
- Integrates parking trajectory into car rear view camera image
- Fitted with general AV input and AV output
- Compatible with all rear view cameras, DVD navigation and other display screens
- Able to adjust length, distance and angle of dynamic track, position lines and safety bottom lines (to fit different positions of rear cameras)
- Requires OBD CAN bus and electronic stability control system (ESC) to function properly
Parking Assist System
Technical Specifications
| Dimensions (L × W × H) | 97 mm × 85 mm × 23 mm |
| Rated voltage | 12 V DC |
| Rated current | 300 mA |
| Max output voltage | 12 V |
| Working temperature | from -30°C to -85°C |
| Video input/output | composite RCA terminal |
| Video standard | PAL / NTSC |
Parking Assist System
Compatibility
Intelligent parking assist system is compatible with vehicles equipped with automotive electronic stability control system. Different car makers may have different names for control system (i.e. ESP, ESC, VSC/ VSA etc.)
* Note! We do not guarantee that IPAS will fit all vehicles with ESC system. Therefore, before purchasing this device check whether it is compatible with your car.
Note! Our technical specialists have found out that parking assist sytem works incorrectly with the following cars:
- Skoda A5 2011
- Mitsubishi 2011
- Lancer
- Pajero Sport
- Asx
- Pajero Wagon
- Volkswagen Touareg 2011 (made for USA market)
- Subaru 2011
- Outback
- Legacy
Parking Assist System
Manuals
Parking Assist System
Package Content
- Parking assistant system module
- Wire harness
- Velcro sticker
- User manual
