Mazda 2 3 6 CX-5 CX-9 Reverse Camera Kit With 28 Pin Cable Wire Harness
Overview
Description
This kit includes a 170° wide-angle reverse camera, connection cables (6 m / 20 ft), and a 28-pin wire harness that ensures seamless integration into your car`s system. Fits Mazda 2 3 6 CX-5 CX-9 2014 2015 2016 2017 2018 2019 2020 MY with 7" monitor.
After installation, the reverse camera image will appear automatically on your factory monitor every time you reverse (the parking assistance lines feature is supported).
Compatible Models
Contact us before ordering to ensure our solution is compatible with your car`s system.
| Model | Model years | System | Additional compatibility conditions |
|
|---|---|---|---|---|
| From | To | |||
| Mazda 2 | 2014 | – |
MZD Connect without OEM navigation system MZD Connect with OEM navigation system BOSE or other manufacturer audio system |
7 " monitor |
| Mazda 3 | 2014 | 2018 | ||
| Mazda 3 Sedan | 2014 | |||
| Mazda 6 | 2015 | – | ||
| Mazda CX-3 | 2014 | |||
| Mazda CX-4 | 2016 | |||
| Mazda CX-5 | 2015 | |||
| Mazda CX-7 | 2017 | |||
| Mazda CX-9 | 2015 | |||
| Mazda MX-5* | 2014 | |||
| Mazda Miata* | 2016 | |||
*Camera will most probably have to be powered up directly from the ACC line as the head unit does not output the required +6 V.

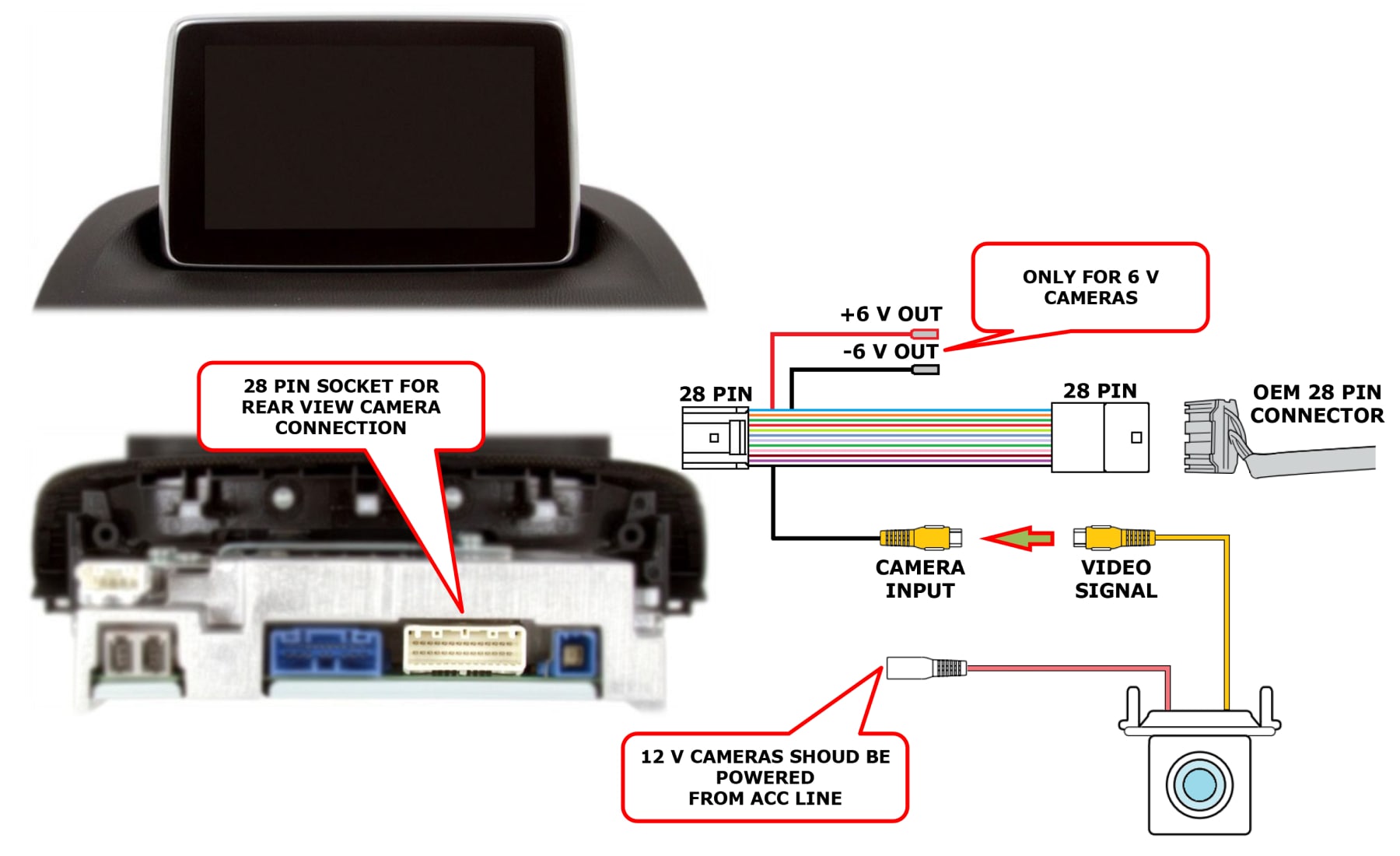

The photo is provided for reference only. Appearance of the control panel and monitor may slightly differ depending on the car model.
Installation Guide
Package Content
- Reverse Camera (720P) with 4PIN connector - 1 pc.
- Wire Harness (28-pin) - 1 pc.
- Connection Cables (6 m / 20 ft)
Specifications
| Camera Connection Kit is compatible with Head Units |
|
