Toyota Camry Corolla Highlander Tacoma Tundra Prius Reverse Camera Kit With 24+5 Pin Cable Wire Harness
Overview
Description

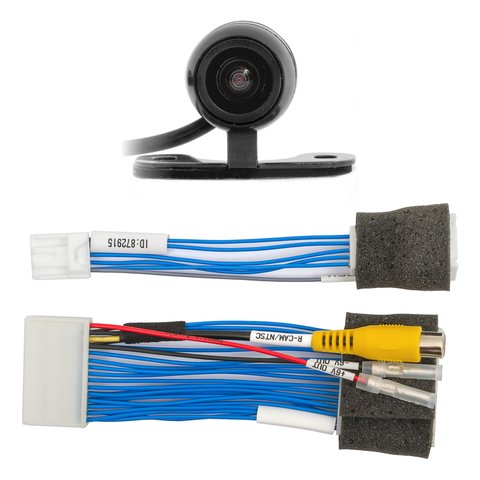

This kit includes a 170° wide-angle reverse camera, connection cables (6 m / 20 ft), and a 24+5-pin wire harness that ensures seamless integration into your car`s system. Fits Toyota Camry Corolla Highlander Tacoma Tundra Prius 2006 2007 2008 2009 2010 2011 2012 2013 2014 MY with MFD GEN5/GEN6 multifunctional displays with DVD navigation.
After installation, the reverse camera image will appear automatically on your factory monitor every time you reverse (the parking assistance lines feature is supported).
A special cable for reverse camera functionality activation is included in the package content. It's designed specifically for cars wherereverse camera functionality was not included by the manufacturer (reverse camera activation signal was not implemented in the head unit).
The additionally installed rear view camera should be powered from ACC line (first turn of the key), otherwise the camera input will be not active. Depending on the type of the camera to be connected, namely on the voltage required for the camera, you can use input voltage +6 V, which the monitor produces. In case the camera requires more than +6 V, connect the camera power to ACC line.
Compatible Models
Contact us before ordering to ensure our solution is compatible with your car`s system.
US Denso GEN5 DVD Navi
| Model | Model years | System | Car radio model | |
|---|---|---|---|---|
| From | To | |||
| 4Runner | 2006 | 2009 | US Denso GEN5 DVD Navi | 2DIN* |
| Camry | 2007 | E7011 / E7012 | ||
| Camry Hybrid | E7011 / E7012 | |||
| Highlander | 2011 | 2012 | E7014 / E7016 | |
| Highlander Hybrid | E7015 / E7017 | |||
| Sequoia | 2008 | 2009 | E7013 | |
| Sienna | 2006 | 2010 | 2DIN* | |
| Solara | 2007 | 2009 | ||
| Tundra | E7013 | |||
| Toyota 2DIN* | 2006 | 2012 | 26028 / 26023 / E7007 / E7008 / E7009 | |
*Toyota 2DIN are factory car radios with unified 200×100 mm dimensions. The model is indicated on the car radio panel.
US Denso GEN6 DVD Navi
| Model | Model years | System | Car radio model | |
|---|---|---|---|---|
| From | To | |||
| 4Runner | 2010 | 2013 | US Denso GEN6 DVD Navi | E7028 / E7029 |
| Avalon | 2011 | 2012 | E7031 | |
| Camry | 2010 | 2011 | E7024 | |
| Camry Hybrid | ||||
| Highlander | 2011 | 2012 | E7033 | |
| Highlander Hybrid | ||||
| Prius | 2010 | 2011 | E7022 | |
| Sequoia | 2012 | E7026 | ||
| Sienna | 2011 | 2014 | E7027 | |
| Tundra | 2010 | 2013 | E7026 | |
| Venza | 2009 | 2012 | E7021 | |
EU, Asia - Aisin GEN5 DVD Navi
| Model | Model years | System | Car radio model | |
|---|---|---|---|---|
| From | To | |||
| Auris | 2006 | 2011 | EU, Asia - Aisin GEN5 DVD Navi | B9005 / B9006 |
| Avensis | 2DIN* | |||
| Camry | 2010 | B9007 | ||
| Corola | 2011 | B9005 / 2DIN* | ||
| Corola Verso | 2DIN* | |||
| Hiace | 2010 | |||
| Hilux | ||||
| LC150 | ||||
| Previa | ||||
| RAV4 | B9004 / 2DIN* | |||
| Verso | 2009 | 2DIN* | ||
| Yaris | ||||
| Toyota 2DIN* | 2012 | B9008 / B9013 / B9014 | ||
*Toyota 2DIN are factory car radios with unified 200×100 mm dimensions. The model is indicated on the car radio panel.
 Toyota SatNav 26028 |
 Toyota E7027 |
 Toyota B9013 |
Photos are provided for reference only. Appearance of the panel may differ, depending on the car radio model. Model names are highlighted with arrows.
Installation Guide
Package Content
- Reverse Camera (720P) with 4PIN connector - 1 pc.
- Wire Harness (24+5-pin) - 1 pc.
- Connection Cables (6 m / 20 ft)
Specifications
| Camera Connection Kit is compatible with Head Units |
|
