Toyota Prius Lexus RX350 RX400h Reverse Camera Kit With 40 Pin Cable Wire Harness
Overview
Description

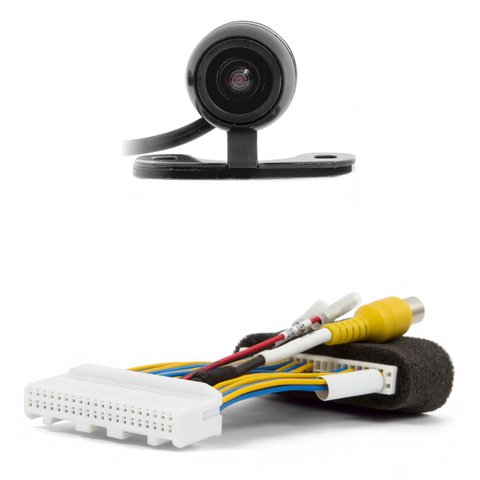

This kit includes a 170° wide-angle reverse camera, connection cables (6 m / 20 ft), and a 40-pin wire harness that ensures seamless integration into your car`s system. Fits Toyota Prius, Lexus RX350, RX400h 2006 2007 2009 2009 MY with MFD GEN5 multi-displays.
After installation, the reverse camera image will appear automatically on your factory monitor every time you reverse (the parking assistance lines feature is supported).
Power of the additional rear view camera should be taken from the ACC line (first key turn), otherwise the camera input will not be active. Depending on the type of camera (more specifically, on the voltage required for work) +6 V output voltage of the monitor may be used. If the camera requires more than +6 V it should be connected to the ACC line.
In some cases the head unit may not have a REVERSE wire. If that's the case, you need to extend the wire from the +12 V tailgate lamp as the cable will not work otherwise.
Compatible Models
Lexus
| Model | Model years | System | Additional compatibility conditions | |
|---|---|---|---|---|
| From | To | |||
| RX350 | 2007 | 2009 | MFD GEN5 multi-display | Cars with OEM navigation Cars without OEM navigation Cars without OEM park assist function |
| RX400h | 2007 | 2008 | ||
Toyota
| Model | Model years | System | Additional compatibility conditions | |
|---|---|---|---|---|
| From | To | |||
| Prius | 2006 | 2009 | MFD GEN5 multi-display | Cars with OEM navigation Cars without OEM navigation Cars without OEM park assist function |
| Prius Touring | 2006 | 2009 | ||
The photo is provided for reference only. Appearance of the control panel and monitor may slightly differ depending on the car model.
Installation Guide
Package Content
- Reverse Camera (720P) with 4PIN connector - 1 pc.
- Wire Harness (40-pin) - 1 pc.
- Connection Cables (6 m / 20 ft)
Specifications
| Camera Connection Kit is compatible with Head Units |
|
