Car video interface is designed for Porsche Cayenne of 2003-2008 model years with PCM 2.1 head unit. It allows you to connect aftermarket navigation, rear view camera, HD/DVD player, Android TV box, TV tuner to the OEM car monitor.
The video interface offers the function of parking guidelines (not dynamic).

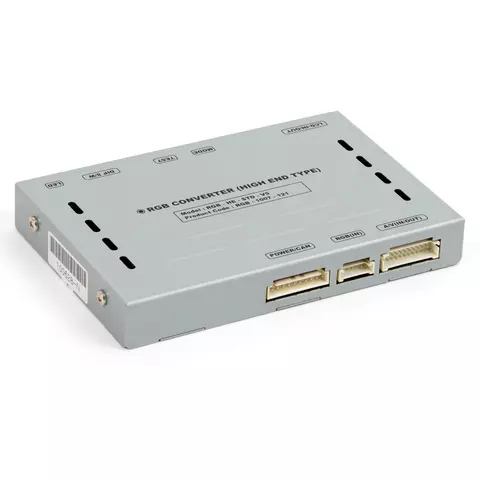

Porsche Cayenne Video Interface
Technical Specifications
- Inputs
- AV (for external video source) x 3
- CVBS (for rear view camera)
- Analog RGB input
- Outputs
- CVBS (output for installed headrest monitors)
- Audio
- Output for connection to the monitor
- Power
- Input power: 8 V DC ~ 24 V DC
- Max. consumed power: 5 W
- Input mode switch
- remote control
- remote modes switch button
- Video input mute function: possible to mute each input with DIP switches
- Automatic display of rear view camera image when reversing (it's impossible to switch to rear view camera mode by remote button or remote control)
- Board dimensions: 150 mm × 95 mm × 21 mm
Porsche Cayenne Video Interface
Compatibility
- Porsche Cayenne with PCM 2.1 head unit (2003-2008 model years)
Porsche PCM 2.1 head unit
Porsche Cayenne Video Interface
Manuals
Porsche Cayenne Video Interface
Package Content
- Car video interface
- Remote control unit with IR cable or OSD keypad
- Sub-board
- Cable set:
- Power cable
- FFC cable
- Cable with mode switch button
- RGB
- AV cable
- Cable for sub-board connection
If you have questions concerning this product or want to share your experience of its installation or application, visit
our forum.
*Product package content and appearance may differ from those presented on the website and depend on video interface version. Please, ask sales manager before purchase.
Note! The video interface must be installed only by the high skilled specialists. In case the device is installed incorrectly the car electronics can be damaged or go out of order.
We are not liable for damage or incorrect operation of the equipment in the case of improper installation.
