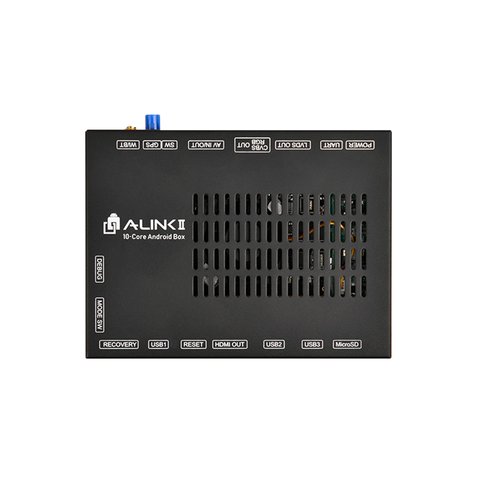

A-LINK2 Universal Navigation Box on Android for OEM Monitors
Overview
Description
A-LINK2 universal navigation box is used to connect navigation to OEM monitors in any car brand or model. The device works on Android 7.1.2 platform which allows you to add new features by installing various apps from Google Play.
Why do you need this navigation box?
First of all, it will help you to quickly get your bearings in an unfamiliar place and find an optimal route to your destination. All information and hints about the route will be on your car monitor. There's no need to connect a smartphone and spoil the look of your car with cables or dock station.
Secondly, this system will also make your trips a lot more entertaining and fun. Stuck in a traffic jam on the way home? No worries, pass the time by watching a movie or a show on your car monitor. Or simply connect a USB drive and enjoy your favorite music.
A-LINK2 also has a neat bonus feature – HDMI output, which provides image of the highest quality.
What makes this box special?
2 in 1 is always a great offer, is it not? That's basically what you get: a reliable navigation system and an awesome multimedia system. And what's even better is that you don't have to worry about finding different devices that may be incompatible with each other.
One of the most useful features of this device is its powerful Android 7.1.2 operating system, which allows you to download and use all sorts of apps from Google Play. More freedom – more features – more comfort!
A-LINK2 comes with a microphone that allows you to use Google assistant. After installation, simply say "OK Google" to activate the assistant.
The box also includes a neat feature that allows you to browse the Internet via Wi-Fi. This will basically turn your car monitor into a personal computer that will always be with you while you're on the road.
What do you get?
- Powerful 10 core processor (6 core CPU+ 4 core GPU) and Android 7.1.2 (Nougat) platform
- HDMI output that provides image of the highest quality
- Control using OEM steering wheel buttons and/or touch screen (resistive or capacitive)
- Play music and video on car speakers and monitor
- Internet connection via Wi-Fi
Additional Options
You can use A-LINK2 to connect Apple TV and enjoy your favorite movies and shows without leaving the car!
Note! Apple TV can only be controlled with Apple TV remote control. Touch screen control is not supported.
Technical Specifications
System | OS | Android 7.1.2 (Nougat) |
Processor | ARM Cortex-A72 Core 1.8 GHz (A72 Dual, A53 Quad), Mali-T860 Quad-Core GPU | |
RAM | 2 GB | |
eMMC | 16 GB | |
Connection | GPS | Ublox8 (GPS/GLONASS/BEIDOU/GALILEO/QZSS/SBAS) |
Wi-Fi | 802.11 a/b/g/n | |
Bluetooth | Bluetooth 4.1* | |
Outputs | HDMI | 1 |
Stereo audio output | 1 | |
Inputs | Slot for microSD card | 1 |
USB 2.0 | 3 | |
General | Voltage | 12-24 V |
Dimensions | 146 × 88 × 23 mm | |
Operating temperature | -15oC ~ 70oC |
*Not used for calls and streaming music.
Note! This navigation box is not compatible with Video Interface with HDMI for Buick, Chevrolet, Opel with PAS!
Manuals
Package Contents
- Navigation box
- Connection cables
- GPS antenna
- Wi-Fi antenna
- Microphone
- External speaker
- Mounting elements
Note! Navigation software, touch screen panels, video interface, controllers are not included in the package.
Note! Navigation box installation should be performed by a well-trained specialist. Otherwise, we are not liable for equipment damage or incorrect operation.
Specifications
Navigation Box is compatible with |
|
Operation System |
|
Wi-Fi Connection |
|
Bluetooth Connection |
|
AV inputs |
|
USB Ports |
|
RAM size |
|
GPS Receiver |
|
ROM size |
|
Processor frequency |
|
