Aftermarket Camera Connection Adapter for Volkswagen

The adapter is designed for aftermarket camera connection to Volkswagen OEM car monitors. The device transforms composite video signal into RGB video signal necessary for the reverse camera connection.

Volkswagen Aftermarket Camera Adapter
Features

• Aftermarket camera connection
• The connected camera image activation when reversing
• OEM parktronic functions preservation

Volkswagen Aftermarket Camera Adapter
Technical Specifications

• Input voltage: 9-15 V DC
• Consumed power: 2.5 W max.
• Operating temperature: -20^oC ~ +80^oC
• Dimensions: 87 × 51 × 23 mm
• Weight: 135 g

Volkswagen Aftermarket Camera Adapter
How to Connect Reverse Camera Using the Adapter

Volkswagen Aftermarket Camera Adapter

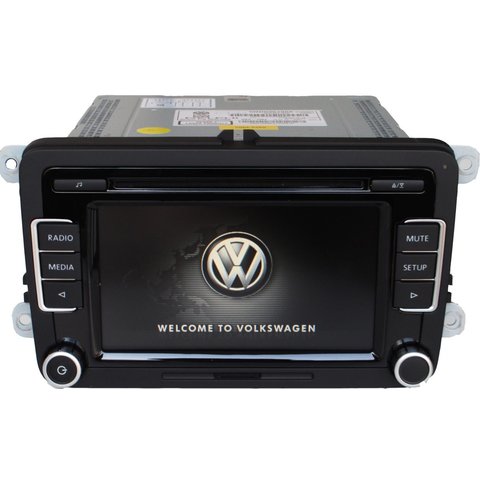

Compatible Monitors

• RCD 510 Delphi
• RNS 310
• RNS 315
• RNS 510

Note! Main condition for VW monitors compatibility: input for the OEM camera connection.

Volkswagen Aftermarket Camera Adapter
Connection and Manuals

Note! You need to have your monitor programmed on the dealer computer, namely to have the rear view camera function activated. Otherwise, the adapter and connected camera will not work. to do this contact your local dealer or follow the manual below. Please, note that it should be done by a well-trained specialist.

• Connection diagram for the aftermarket camera adapter
• Activation procedure for the rear view camera input on the Volkswagen head units

Volkswagen Aftermarket Camera Adapter
Package Content

• Adapter main module
• Connection cables
