Reverse Camera Cable 8 pin for Subaru Outback, Forester, Crosstrek, Impreza, Legacy, WRX 2008-2015 MY

Cable for rear view camera connection to the OEM monitors of Subaru cars of 2008-2015 model years. Using this cable you will be able to install the aftermarket camera Plug&Play without damaging the car wires.

Image from the rear view camera will automatically be displayed on the screen when reversing. The device is connected to the 8 pin socket (as shown in the connection diagram). After connection all OEM functions which work using this socket are preserved due to transit type of connection.

Note! The additionally installed rear view camera can be powered from rear lamps power line. I.e. constant power line is not needed for activation. Depending on the type of the camera to be connected, namely the operating voltage, you can use power converter to decrease heating of the linear power supply which is built in the camera. In case the camera requires more than +6 V, connect the camera power directly to the rear lamps power line.

Note! Only cameras in NTSC format are supported.

The most frequently asked questions about camera and video connection cables.

Reverse Camera Connection Cable for Subaru
Compatibility

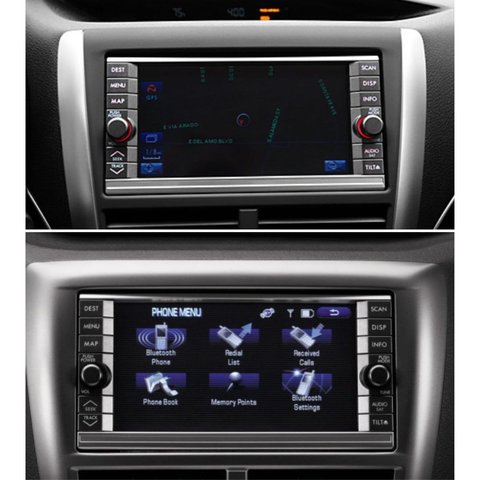

Subaru with 2DIN Kenwood navi monitor

Model	Model years		Monitor	Additional compatibility condition	Photo
	From	To
Exiga	2008	2013	2DIN Kenwood navi	8 pin socket on the monitor for cable connection
Forester	2009	2013
Impreza	2008	2013
OBS	2008	2013
STI	2008	2013
WRX	2008	2013

Subaru with the monitor with the external navigation module

Model	Model years		Monitor	Additional compatibility condition	Photo
	From	To
Legacy	2010	2012	with external navigation module	8 pin socket on the monitor for cable connection
Outback	2010	2012

Subaru with 4.3″ monitor

Model	Model years		Monitor model	Additional compatibility condition	Photo
	From	To
Crosstreck	2012	2015	CM631UD	8 pin socket on the monitor for cable connection
Forester	2011	2015	CP635U1
			CP435L1
			CP335R1
			CP235K1
Impreza	2012	2015	CM631UD

Subaru with the monitor with built-in DVD player and navigation module

Model	Model years		Monitor	Additional compatibility condition	Photo
	From	To
Legacy	2008	2009	Monitor with built-in DVD and navigation module	8 pin socket on the monitor for cable connection
Outback	2008	2009

Subaru with TomTom monitor

Model	Model years		Monitor	Additional compatibility condition	Photo
	From	To
Forester	2010	2015	TomTom	8 pin socket on the monitor for cable connection

The photo is provided for reference only. Appearance of the control panel and monitor may slightly differ depending on the car model.

Reverse Camera Connection Cable for Subaru
Manuals

• Connection diagram for the cable for Subaru
