Rear Camera Cable 24 pin for Lexus CT200h, ES250, ES300h, ES350, NX200t, NX300h (EU market)
Overview
Frequently bought together
Description

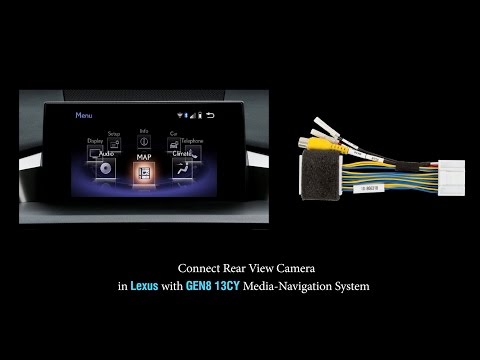

This cable allows you to connect rear view cameras in Lexus cars with GEN8 13CY/15CY EU media-navigation system. The cable offers Plug&Play installation of aftermarket cameras without damaging the OEM wiring. Both cars that are equipped with OEM navigation system and cars that are not are supported.
Checking for compatibility is quite simple: if the joystick is shaped as a disk or a puck and the main menu is of the "carousel" type then you can use this cable in your car.
Image from the rear view camera will automatically be displayed on the screen when reversing. The device is connected to the 24 pin socket (as shown in the connection diagram). After connection all OEM devices that work using this socket will not be disturbed and will continue to work as they did prior to the connection. PDC function (in connection with OEM parktronic system) is supported.
Note! Power of the additional rear view camera should be taken from the ACC line (first key turn), otherwise the camera input will not be active. Depending on the type of camera (more specifically, on the voltage required for work) +6 V output voltage of the monitor may be used. If the camera requires more than +6 V it should be connected to the ACC line.
The most frequently asked questions about camera and video connection cables.
Camera Connection Cable
Video
Camera Connection Cable
Compatibility
Model | Model year | Head unit | Additional compatibility condition | |
---|---|---|---|---|
From | To | |||
CT200h | 2014 | 2019 | FujitsuTen GEN8 13CY/15CY EU 8th generation, car models of the EU market |
Cars with OEM navigation system Cars without OEM navigation system Cars equipped with Lexus Display Audio Controller |
ES250 | 2018 | |||
ES300h | 2015 | |||
ES350 | ||||
IS200t | 2019 | |||
IS220d | 2014 | |||
IS250 | ||||
IS300 | 2015 | |||
IS300h | ||||
NX200t | 2014 | 2018 | ||
NX300h | ||||
RC200t | 2015 | |||
RC300h | ||||
RC F | ||||
RX200t | 2019 |
Note! Only cameras in NTSC format are supported.
Note! Pioneer head units are not supported.
Note! These photos are provided for reference only. Joystick may look differently depending on the car model.
