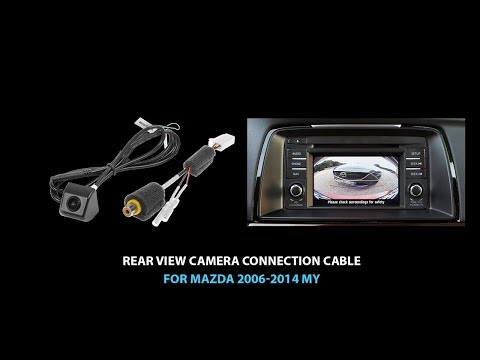

Reverse Camera Cable 4 pin for Mazda 2, Mazda 3, Mazda 6, CX-5, CX-9, CX-3 2006-2014 MY

Cable for rear view camera connection in Mazda cars of 2006-2014 MY. Using this cable you will be able to install an aftermarket camera Plug&Play without damaging the car wires.

Image from the rear view camera will automatically be displayed on the screen when reversing. The device is connected to the 4-pin socket (as shown in the connection diagram). Depending on your car radio model, this socket may be located in a different place from the one shown in the diagram. After connection all OEM devices that work using this socket will not be disturbed and will continue to work as they did prior to the connection.

Note! In some cases, rear view activation signal may be absent in the wiring, connected to the head unit. For cases like this there’s a gray REV wire in our cable. In should be installed, as shown in the manual. +12 V should be supplied to this wire when the car is switched to reverse (may be taken from the rear lamp). Also, you may check the connection of this activation signal in the diagnostics menu.

Note! The additionally installed rear view camera should be powered from ACC line (first turn of the key), otherwise the camera input will be not active. Depending on the type of the camera to be connected, namely on the voltage required for the camera, you can use input voltage +6 V, which the monitor produces. In case the camera requires more than +6 V, connect the camera power to ACC line.

The most frequently asked questions about camera and video connection cables.

Video

Compatibility

Incompatible Models

Note! Only NTSC cameras are supported.

Compatible HU

Incompatible HU

The photo is provided for reference only. Appearance of the control panel and monitor may slightly differ depending on the car model.

Manuals

• Download connection diagram for cable for Mazda
• Download rear view signal activation manual for cable for Mazda
