Car 4 Channel Colour Video Quad Splitter
id: 864632
Car 4 Channel Colour Video Quad Splitter
Overview
Description
Specifications
Delivery
Payment
Warranty
USD 35.00
Overview
4 channel color quad splitter provides automated, sequential or simultaneous image display from up to four car cameras. Also supports the screen mirroring function. Read more
USD 35.00
Description
4 channel color quad splitter provides automated, sequential or simultaneous image display from up to four car cameras (front / rear / side view). It also supports the screen mirroring function. Remote controller ensures easy switching between camera images switching and quad splitter control.
Color Quad Splitter
Features
- Connection up to 4 car cameras (front / rear / right / left view)
- Screen mirroring function
- Displaying images from all car cameras simultaneously
- Displaying images from cameras one by one
- Color image
Color Quad Splitter
Application Conditions
Please pay attention that all connected cameras (devices) should work in one video system (PAL or NTSC). If video systems are combined some devices will work incorrectly: distorted or black-and-white image will be displayed.
Color Quad Splitter
Technical Specifications
| Input voltage | DC 5-12 V |
| Inputs | 4×RCA |
| Outputs | 1×RCA |
| Acceptable signal modes | PAL / NTSC |
| PAL image resolution | 720×576 |
| Frame rate (PAL) | 100 f/s |
| NTSC image resolution | 720×480 |
| Frame rate (NTSC) | 120 f/s |
| Dimensions | 125×50×20 mm |
| Operating temperature | -10°C to +60°C |
Color Quad Splitter
Package Content

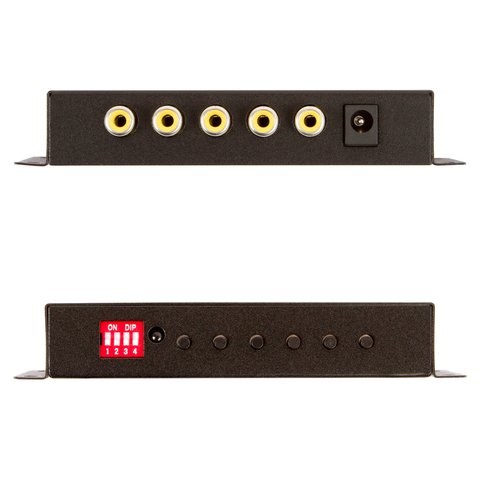

- Quad splitter main module

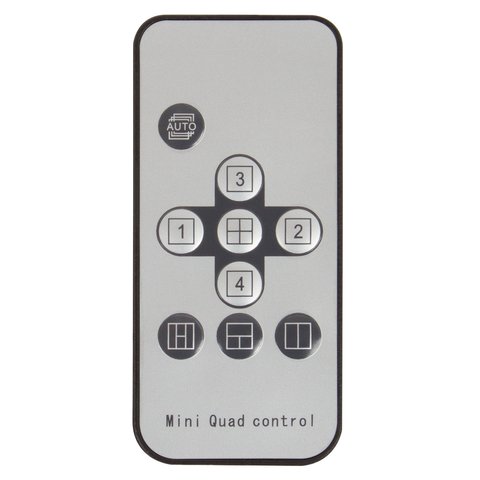

- Remote control
- User manual
Product specifications, appearance and package content may differ from those presented on the website and can be changed without notice. Please, contact sales manager before purchase.
