Car Camera Connection Cable for Toyota Yaris with iA Connect Monitor
This cable allows you to connect rear view cameras in Toyota cars with OEM iA Connect multimedia system . The cable offers Plug&Play installation of aftermarket cameras without damaging the OEM wiring.
Image from the rear view camera will automatically be displayed on the screen when reversing. The device is connected to the 28 pin socket (as shown in the connection diagram). After connection all OEM devices that work using this socket will not be disturbed and will continue to work as they did prior to the connection.
Note! Power of the additional rear view camera should be taken from the ACC line (first key turn), otherwise the camera input will not be active. Depending on the type of camera (more specifically, on the voltage required for work) +6 V output voltage of the monitor may be used. If the camera requires more than +6 V it should be connected to the ACC line.
The most frequently asked questions about camera and video connection cables.
This cable allows you to connect rear view cameras in Toyota cars with OEM iA Connect multimedia system . The cable offers Plug&Play installation of aftermarket cameras without damaging the OEM wiring.
Image from the rear view camera will automatically be displayed on the screen when reversing. The device is connected to the 28 pin socket (as shown in the connection diagram). After connection all OEM devices that work using this socket will not be disturbed and will continue to work as they did prior to the connection.
Note! Power of the additional rear view camera should be taken from the ACC line (first key turn), otherwise the camera input will not be active. Depending on the type of camera (more specifically, on the voltage required for work) +6 V output voltage of the monitor may be used. If the camera requires more than +6 V it should be connected to the ACC line.
The most frequently asked questions about camera and video connection cables.
Camera Connection Cable
Compatibility
| Model | Model years | System | Additional compatibility conditions |
|
|---|---|---|---|---|
| From | To | |||
| Yaris | 2017 | – | iA Connect without OEM navigation system iA Connect with OEM navigation system BOSE or other manufacturer audio system |
7 " OEM monitor |
| Yaris R | 2016 | |||
| Yaris Sedan US version | ||||
Note! Only cameras in NTSC format are supported.

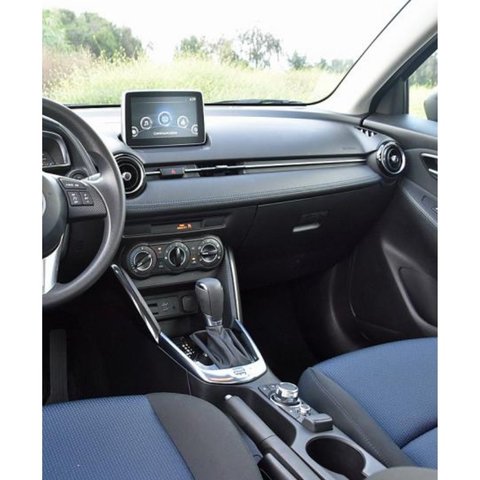

The photo is provided for reference only. Appearance of the control panel and monitor may slightly differ depending on the car model.
