Car Camera Transmitter and Receiver
sales team

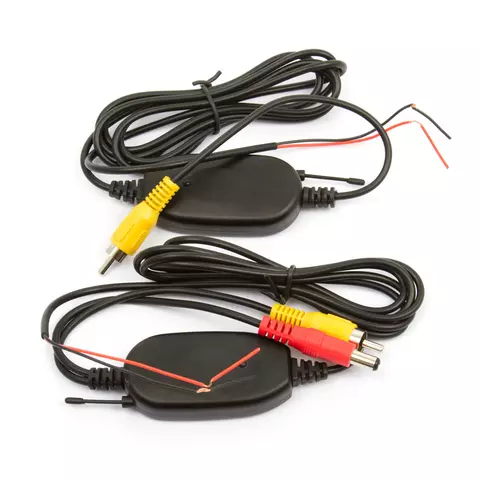

This colour camera transmitter and receiver is perfect decision if you do not want to mess with wires in the car. With the aid of this kit your car camera can be made wireless just in one minute. Transmitter is connected to your camera and receiver to your head unit with the screen. Thus, video signal from the car camera is transmitted to your head unit screen at 2.4 GHz frequency.
Camera Transmitter and Receiver
Technical Specifications
| Transmission distance | 10 m | |
| Input resistance | 75 Ohm | |
| Demodulation | 2.370 GHz | |
| Intermediate frequency band | 18 MHz | |
| High receiver sensitivity | -90 dBm | |
| AV output | Composite | |
| Weight | receiver | 42 g |
| transmitter | 44 g | |
| Dimensions | receiver | 60 mm × 32 mm |
| transmitter | 60 mm × 32 mm | |
| DC input | 9 V - 14 V | |
| Cable length | 1.3 m | |
| Working temperature | -20°C to +60°C | |
| Working current | 200 mA | |
Camera Transmitter and Receiver
Package Content
- Video signal receiver
- Video signal transmitter
