Overview
0.98 kg Warranty: 6 months

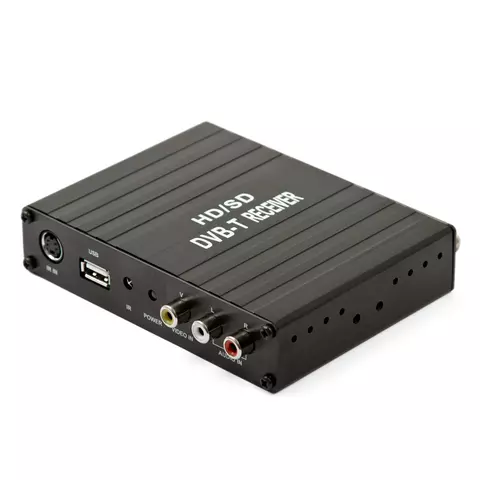

Car digital DVB-T TV receiver as connected to your car monitor allows you to watch digital TV programs directly in your car.
Description
Car DVB-T receiver as connected to your car monitor allows you to watch digital TV programs directly in your car. * This digital DVB-T MPEG4 TV tuner is equipped with USB port providing possibility to watch films / listen to music/ view pictures from USB drives and record TV programs. The device can be used not only in the car but at home together with your TV set.
Car DVB-T Receiver
Features
- Fully compliant with MPEG-2,H/264 MPEG4 AVC and DVB-T standards
- PIP (picture in picture) support
- Channel editing function
- Automatic and manual search
- Memory for over 1000 channels
- OSD teletext and VBI teletext support
- 9 languages (English, German, French, Russian, Portuguese, Czech, Danish and Italian) support
- Possibility to connect rear view camera
- USB port functions
- Audio files playback (MP3)
- Video files playback MP4 (AVI/MPG/DAT/VOB)
- Pictures view (JPEG)
- Recording programs
- Software upgrade
Car DVB-T Receiver
Technical Specifications
DVB-T tuner
| TV tuner | RF | UHF: 470 MHz to 862 MHz |
| VHF: 174 MHz to 230 MHz | ||
| Input impedance | 75 Ohm | |
| Signal level | -80 dBm to -10 dBm | |
| Channel bandwidth | 6 MHz / 7MHz / 8MHz | |
| Demodulation | Standard | DVB-T EN300 744 |
| Video decoder | Standard | MPEG-4 AVC/H.264 [email protected] MPEG-2 [email protected]/ML |
| Transport stream | ISO/IEC 13818-1 MP2/MP4 AVC/H.264 | |
| Video aspect ratio | 4:3 /16:9 | |
| Video system | PAL/NTSC/SECAM | |
| Video output | 1 ± 0.3 Vpp | |
| Video resolution | 720×[email protected] fps | |
| 720×[email protected] fps | ||
| Y Pr Pb resolution | HD 1920 × 1080i | |
| 1920 × 720p | ||
| Audio decoder | Standard | MPEG-2 / HE_AAC |
| General | Dimensions | 125 mm × 94 mm × 27 mm |
| Weight | 280 g | |
| Power supply | 12 V to 24 V DC | |
| Power consumption | Running: 6 W | |
| Standby: 1.5 W | ||
| Operating temperature | -10°C to +50°C | |
| Storage temperature | -40°C to 65°C |
DVB-T Antenna
| Receiving frequency range | VHF-H 170 MHz to 230 MHz |
| UHF: 470 MHz to 860 MHz | |
| Supply voltage | 5 V ± 10% only from cable (tuner) |
| Current consumption | 30 mA max |
| Gain (at 5 V IN) | 20 dB (15 dB min) |
| Operation temperature | -20°C to +85°C |
| Storage temperature | -40°C to +85°C |
| Coaxial cable length | 5.0 m |
| Dimensions (L × W × T) | 223 mm × 16.5 mm × 10 mm / |
Car DVB-T Receiver
Package Content
- DVB-T receiver module
- Waterproof DVB-T antenna × 2 pc.
- Cable set
- Power cable
- 6 pins DIN plug with RCA cables
- A/V cable
- IR eye
- Remote control unit
- Mounting package
Note! Before purchasing this car DVB-T receiver please check DVB-T coverage in your region.
Various Digital TV Formats Coverage Map
Read more
Description
Car DVB-T receiver as connected to your car monitor allows you to watch digital TV programs directly in your car. * This digital DVB-T MPEG4 TV tuner is equipped with USB port providing possibility to watch films / listen to music/ view pictures from USB drives and record TV programs. The device can be used not only in the car but at home together with your TV set.
Car DVB-T Receiver
Features
- Fully compliant with MPEG-2,H/264 MPEG4 AVC and DVB-T standards
- PIP (picture in picture) support
- Channel editing function
- Automatic and manual search
- Memory for over 1000 channels
- OSD teletext and VBI teletext support
- 9 languages (English, German, French, Russian, Portuguese, Czech, Danish and Italian) support
- Possibility to connect rear view camera
- USB port functions
- Audio files playback (MP3)
- Video files playback MP4 (AVI/MPG/DAT/VOB)
- Pictures view (JPEG)
- Recording programs
- Software upgrade
Car DVB-T Receiver
Technical Specifications
DVB-T tuner
| TV tuner | RF | UHF: 470 MHz to 862 MHz |
| VHF: 174 MHz to 230 MHz | ||
| Input impedance | 75 Ohm | |
| Signal level | -80 dBm to -10 dBm | |
| Channel bandwidth | 6 MHz / 7MHz / 8MHz | |
| Demodulation | Standard | DVB-T EN300 744 |
| Video decoder | Standard | MPEG-4 AVC/H.264 [email protected] MPEG-2 [email protected]/ML |
| Transport stream | ISO/IEC 13818-1 MP2/MP4 AVC/H.264 | |
| Video aspect ratio | 4:3 /16:9 | |
| Video system | PAL/NTSC/SECAM | |
| Video output | 1 ± 0.3 Vpp | |
| Video resolution | 720×[email protected] fps | |
| 720×[email protected] fps | ||
| Y Pr Pb resolution | HD 1920 × 1080i | |
| 1920 × 720p | ||
| Audio decoder | Standard | MPEG-2 / HE_AAC |
| General | Dimensions | 125 mm × 94 mm × 27 mm |
| Weight | 280 g | |
| Power supply | 12 V to 24 V DC | |
| Power consumption | Running: 6 W | |
| Standby: 1.5 W | ||
| Operating temperature | -10°C to +50°C | |
| Storage temperature | -40°C to 65°C |
DVB-T Antenna
| Receiving frequency range | VHF-H 170 MHz to 230 MHz |
| UHF: 470 MHz to 860 MHz | |
| Supply voltage | 5 V ± 10% only from cable (tuner) |
| Current consumption | 30 mA max |
| Gain (at 5 V IN) | 20 dB (15 dB min) |
| Operation temperature | -20°C to +85°C |
| Storage temperature | -40°C to +85°C |
| Coaxial cable length | 5.0 m |
| Dimensions (L × W × T) | 223 mm × 16.5 mm × 10 mm / |
Car DVB-T Receiver
Package Content
- DVB-T receiver module
- Waterproof DVB-T antenna × 2 pc.
- Cable set
- Power cable
- 6 pins DIN plug with RCA cables
- A/V cable
- IR eye
- Remote control unit
- Mounting package
Note! Before purchasing this car DVB-T receiver please check DVB-T coverage in your region.
Various Digital TV Formats Coverage Map
Product specifications, appearance and package content may differ from those presented on the website and can be changed without notice. Please, contact sales manager before purchase.
