Car DVB-T2 receiver will turn your flip-down, in-dash or OEM monitor into car TV set. If you want to connect the receiver to the OEM head unit, most likely you will also need a video interface.
This mobile TV receiver has everything necessary for installation in the car.
The TV receiver has embedded media player which allows you to watch video of virtually any format from the USB carrier and use the receiver as an HD player.
Car DVB-T2 Receiver
Features
- DVB-T and DVB-T2 standards
- Connection via composite output or via HDMi
- Multimedia functions (via USB port) (FAT\ FAT32 \ NTFS)
- Video
- Audio
- Images
- Support of almost all video and audio formats including AC3
- Two indoor antennas with amplifier*
- PVR function (TV programs recording)
- Timeshift function- possibility to pause the broadcast and resume watching starting from the paused moment
- EPG
- Multilanguage OSD menu (English, Spanish, German, Portuguese, Italian, French, Russian etc.)
- IR eye for remote control unit
Car DVB-T2 receiver will turn your flip-down, in-dash or OEM monitor into car TV set. If you want to connect the receiver to the OEM head unit, most likely you will also need a video interface.
This mobile TV receiver has everything necessary for installation in the car.
The TV receiver has embedded media player which allows you to watch video of virtually any format from the USB carrier and use the receiver as an HD player.
Car DVB-T2 Receiver
Features
- DVB-T and DVB-T2 standards
- Connection via composite output or via HDMi
- Multimedia functions (via USB port) (FAT\ FAT32 \ NTFS)
- Video
- Audio
- Images
- Support of almost all video and audio formats including AC3
- Two indoor antennas with amplifier*
- PVR function (TV programs recording)
- Timeshift function- possibility to pause the broadcast and resume watching starting from the paused moment
- EPG
- Multilanguage OSD menu (English, Spanish, German, Portuguese, Italian, French, Russian etc.)
- IR eye for remote control unit
*Note! The package contains antenna for installation inside the car. If you want to install the antenna in the front or rear bumper for better TV signal, use the waterproof antenna.
Car DVB-T2 Receiver
Technical Specifications
| Input signal frequency | UHF: 474 MHz - 858 MHz |
| VHF: 177.5 MHz - 226.5 MHz | |
| Decoding standards | MPEG4,MP@ML,MP@HL,H.264/AVC |
| MPEG-1, and-2,layer and 2, MPEG-4, HE-AAC | |
| Inputs | USB |
| Input for antenna (2) | |
| Outputs | Video (2) |
| HDMI | |
| Audio (R & L) | |
| Power | +12 V ~ 24 V, 6 W |
| Dimensions | 141 mm × 88 mm × 27 mm (without connectors) |
Car DVB-T2 Receiver
Package Content
- DVB-T2 receiver
- Indoor antenna with amplifier (2)
- Remote control

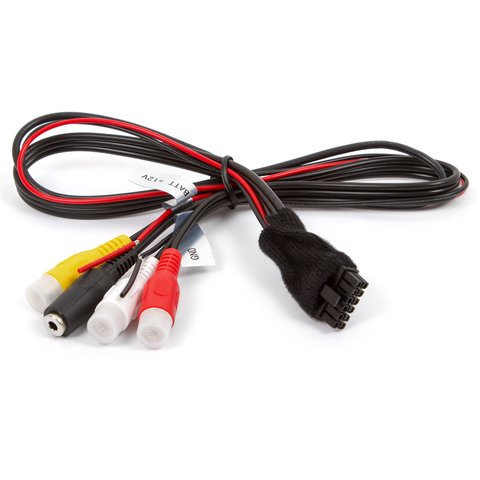

- Cables set
- Power cable

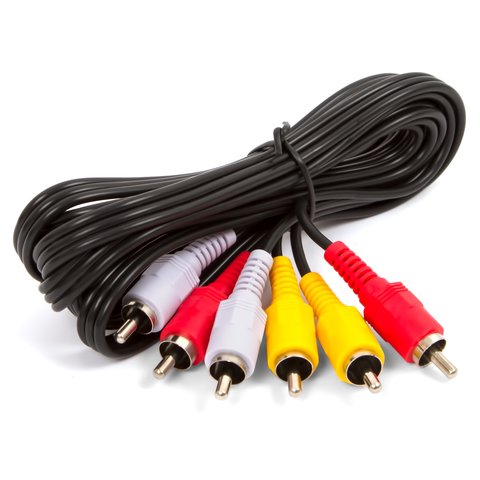

- A/V cable
- Cable with the remote IR eye
- User guide
Note! Before purchasing this car DVB-T2 receiver please check DVB-T2 coverage in your region.
Various Digital TV Formats Coverage Map
| TV Receiver is compatible with Multimedia and TV | |
| TV Receiver is compatible with |
|
| Standards |
|
| PVR function |
|
| Power |
|
