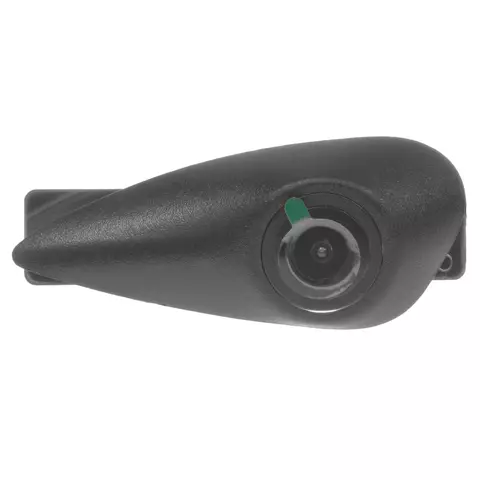

Car Front View Camera for Hyundai (Medium)
when in stock
Car front view camera for Hyundai (medium) allows you to control your way when driving out from the narrow places and also be more confident when parking your car. The camera is mounted on the radiator grill.
Note! This camera is not meant for constant connection to car's electrical system. Power supply should be organized in such way that the camera switches on only when it is necessary. We also recommend using voltage converter 12 V to 7 V.
At the moment, the two most popular connectors on the market are RCA (tulip) and 4PIN.
This camera is equipped with 4PIN connector, which is much thinner compared to RCA. It makes the installation even more convenient, since the cable is easier to push through the nodes of the car.
Usage
This is a front view camera with parking guidelines by default. However, you can disable them. To do this, cut the white cable:
Installation place example
Note! Please make sure that the installation place in your Hyundai logo has the sime size as the camera: 68.3 mm.
Features
- Colourful image
- High resolution
- Waterproof case
- High or low temperature resistant
- Easy installation
- Automatic white balance
Technical Specifications
| Sensor | 1/3 Sony CCD |
| Video system | NTSC |
| Effective pixels | 628 × 582/628 × 512 |
| Horizontal resolutions | 480 TVL |
| Viewing angle | 170° |
| Minimum illumination | 0.5 lux |
| Video output | 1.0Vp-p，75 Ohm |
| Case | waterproof (IP66 class) |
| Operating voltage | 12 V ± 1V |
| Operating temperature | from -20°C to +70°C |
| Storage temperature | from -40°C to +80°C |
| Dimensions | 73 × 70 × 30 mm |
| Power cable length | 1.5 m |
| Video cable length | 5 m |
Package Content
- Car front view camera for Hyundai (medium)
- Power cable
- Video cable
| Front View Camera is compatible with the following models of Cars |
|
| Viewing angle |
|
| Place of Installation |
|
