Car video interface for BMW allows connection and usage of external video sources such as DVD player, TV tuner, rear view camera, etc. on your built-in monitor. Car video adapter fits BMW models of 1 / 3 / 5 / 6 series and X5/X6.
Car Video Interface for BMW
Specifications:
Input: multi video interface
- Analog RGB (Sync on Green) × 1
- CVBS input (rear camera source) × 1
- A/V input (NTSC & PAL) × 3
- LCD input × 1
Output
- CVBS output (video out for headrest monitor connection) × 2
- LCD output × 1
- Audio output × 1
Power consumption
- Input power: 8 V DC ~ 24 V DC
- Consumption power: 12 W, Max
Switch input Mode
- By source toggle
- With the aid of OSD keypad
- By pressing Menu button via CAN
- Possibility to skip each input source by adjusting DIP switch
Dimensions: 154 mm × 94 mm × 20 mm
Car Video Interface for BMW
Compatible vehicles
| Series |
Body type |
Model years |
Type of the system |
Type of the connector |
| From |
To |
| 1 |
|
|
|
CCC |
Square |
| 3 |
E90 |
2007 |
2008 |
| E91 |
| 5 |
E60 |
2004 |
2008 |
| 6 |
E63 |
| X5 |
E70 |
2007 |
|
| X6 |
|
2008 |
|
Car Video Interface for BMW
Manuals
Car Video Interface for BMW
Package Content
- Car video interface module
- Remote control unit with IR cable or OSD keypad
- Cables set

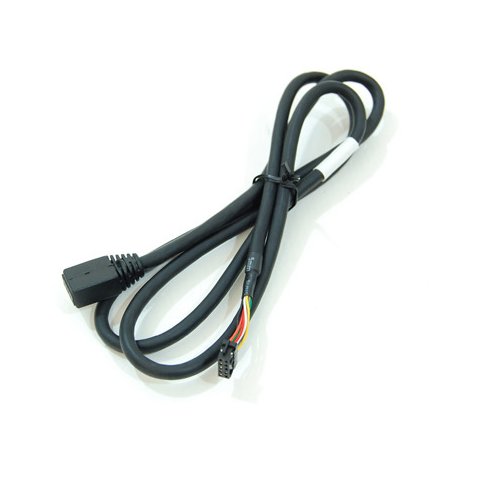

- LCD (F-TYPE) cable
- Cable with mode switch button
- Video cable
- Power cable with protective filter
- RGB (IN) cable
If you have questions concerning this product or want to share your experience of its installation or application, visit
our forum.
*Product package content and appearance may differ from those presented on the website and depend on video interface version. Please, ask sales manager before purchase.
Note! The video interface must be installed only by the high skilled specialists. In case the device is installed incorrectly the car electronics can be damaged or go out of order.
We are not liable for damage or incorrect operation of the equipment in the case of improper installation.
