Overview
0.55 kg Warranty: 12 months
Car video interface is designed for Mercedes-Benz E/CLS/GL/ML/SL-Class 2009∼ equipped with 7″ display head units with SD memory cards slots. Read more
Description
Car video interface is designed for Mercedes-Benz B/E/CLS/G/GL/ML/SL-Class 2009∼ equipped with 7″ display head units with SD memory cards slots. Car video interface allows you to connect and use external video sources such as DVD player, TV tuner, rear view camera, navigation boxes, video game console with OEM head unit and installed headrest monitors.
Car Video Interface for Mercedes-Benz
Technical Specifications
- Inputs
- LVDS from vehicle
- Analog RGB for C-Sync
- AV x 2
- Input for rear view camera
- Outputs
- LVDS to original monitor
- Audio Switching
- AV outputs (for headrest monitors) x 2
- Mode Switching
- DIP switches
- Remote mode switch button
- OEM switch
- Dimensions
- Main board: 150 mm x 96 mm x 24 mm
- Power noise filter: 53 mm x 43 mm x 31 mm
Car Video Interface for Mercedes-Benz
Compatibility
| Class | Head unit type | Model years |
|---|---|---|
| B | Head units with 7″ monitors and SD slots |
2009∼ |
| CLS | ||
| E | ||
| G | ||
| GL | ||
| ML | ||
| SL | ||
| SL AMG |
 |
 |
 |

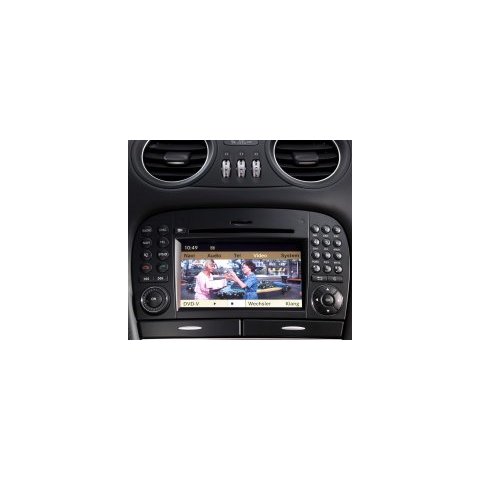

| MB B-Class 2010 head unit | MB CLS-Class 2009 head unit | MB SL-Class 2009 head unit |
Car Video Interface for Mercedes-Benz
Package Content
- Car video interface main board
- Sub-boards x 2
- Power noise filter
- Cables set:

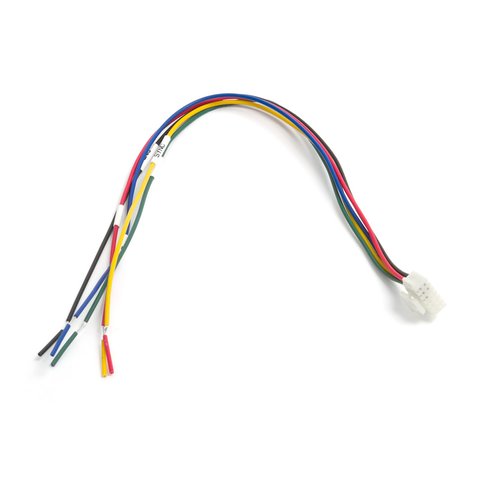

- Power cable
- LVDS cable
- RGB cable
- AV cable

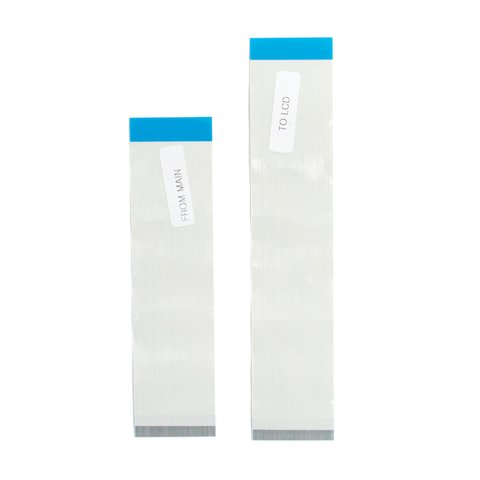

- FFC cable x 2
- Cable with remote mode switch button
If you have questions concerning this product or want to share your experience of its installation or application, visit our forum.
*Product package content and appearance may differ from those presented on the website and depend on video interface version. Please, ask sales manager before purchase.
Note! The video interface must be installed only by the high skilled specialists. In case the device is installed incorrectly the car electronics can be damaged or go out of order.
We are not liable for damage or incorrect operation of the equipment in the case of improper installation.
We are not liable for damage or incorrect operation of the equipment in the case of improper installation.
All rights reserved. This material from car-solutions.com web site may not be published, rewritten or redistributed in whole or part without authorship indicated and backlinks provided.
Specifications
| Video Interface is compatible with the following models of Cars |
|
| Video Interface is compatible with Head Units |
|
| Touch screen control of the connected devices |
|
| Adaptive parking guidelines |
|
| Modes switch by OEM buttons |
|
| CAN bus support |
|
| Navigation input |
|
| DVD/HD/TV connection input |
|
| Rear view camera input |
|
| Built-in navigation |
|
