CS-A440P Navigation System on Android 4.4 for Pioneer Multimedia Receivers
sales team
CS-A440P navigation system for connection to Pioneer multimedia receiver with 800×480 resolution. Such receivers started to be manufactured approximately from 2012. The module offers full-service navigation with touch screen control and Plug&Play connection.
*Note! If you want to connect navigation on Android to OEM car monitor, you will need Andromeda navigation box.

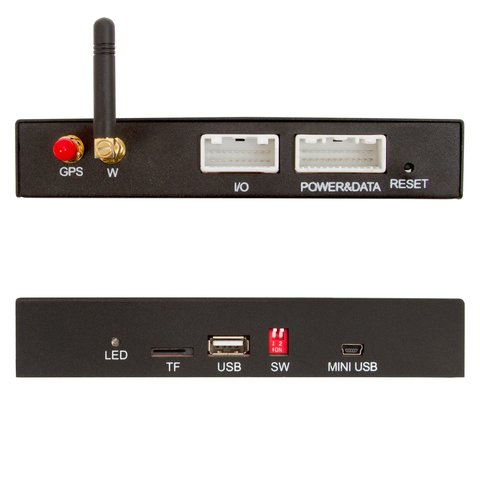

CS-A440P Navigation System
Features
CS-A440P navigation system for connection to Pioneer multimedia receiver with 800×480 resolution. Such receivers started to be manufactured approximately from 2012. The module offers full-service navigation with touch screen control and Plug&Play connection.
*Note! If you want to connect navigation on Android to OEM car monitor, you will need Andromeda navigation box.
CS-A440P Navigation System
Features
- Touch screen control
- Sound reproduced by the OEM speakers*
- Switching to navigation by the OEM button*
- Built-in Wi-Fi module
- USB inputs
- Slot for SD card
- Connection to Internet via 3G modem
- Connection to OEM antenna via special adapter
* You can adjust that according to the manual for your Pioneer receiver.
Note! 3G modem and antenna adapter are not included in the package.
CS-A440P Navigation System
Technical Specifications
| Operating system | Android 4.4 |
| Processor | Dual-Core 1.2 GHz |
| RAM | DDR3 1 GB |
| ROM | Flash eMMC 4 GB |
| RGB output resolution | 800X480 |
| Wi-Fi | 802.11b/g/n |
CS-A440P Navigation System
Compatibility
| Pioneer receiver model | Compatibility condition |
|---|---|
| AVH-X Series | 800×480 HD Version |
| AVH-X5500BT | |
| AVH-X5550BT | |
| AVH-X3500DAB | |
| AVH-X2500BT | |
| AVH-X2550BT | |
| AVH-X1500 | |
| AVH-X1550BT | |
| AVH-X8500BT | |
| AVH-X8550BT | |
| AVH-X1650 | |
| AVH-X2650 | |
| AVH-X5650 | |
| AVH-X8650 |
CS-A440P Navigation System
Manuals
CS-A440P Navigation System
Package Content
- CS-A440P navigation system
- Connection cables
- GPS antenna
Note! 3G modem and antenna adapter are not included in the package.
Note! Navigation system installation shall be performed by well-trained specialist. Otherwise, we are not liable for equipment damage or incorrect operation.
