Front View and Rear View Camera Connection Kit for Audi A3
Overview
Description
Installing a front and a rear view camera is the best way to make any car safer and more comfortable.
A front view camera allows you to see everything that's happening near your car. Every detail that might not be visible from the driver's seat will be shown on the monitor of your multimedia system. Such camera will protect your car from damages and will help you park even in the most difficult places.
Rear view camera provides a high quality image with a wide viewing angle. Such camera, combined with active parking guidelines function (PAS), will become an irreplaceable parking assistant for any driver.
The front view camera is installed into the car emblem while the rear view camera is installed in the tailgate handle. Both cameras are installed in OEM places, designed by the manufacturer, and so they do not spoil car appearance.

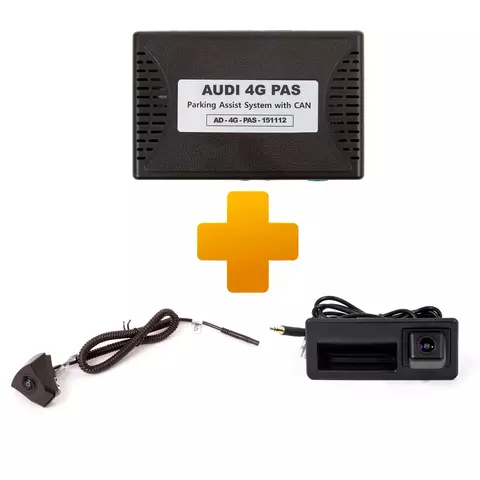

Picking the right components for installation can prove to be a difficult task. Therefore, we have included everything you need in this kit: camera connection adapter for Audi A3, a front view camera and a rear view camera. All you need to do is install the adapter and connect the cameras.
Adapter
This adapter is designed for connecting rear view cameras to the OEM monitor of Audi cars. The adapter also has active parking guidelines function.
Technical Specifications
- Inputs:
- Analog RGB input for navigation systems
- CVBS for rear view camera
- CVBS for front view camera
- LVDS
- Outputs:
- LCD output
- Power:
- Input power: 8 V DC ~ 24 V DC
- Max. power consumption: 12 Watt
- Dimensions: 116 mm × 83 mm × 21 mm
- Input mode switching
- DIP switches
- With an OEM button via CAN
Manuals
Front View Camera
Features
- High-quality image
- Shock protection design
- Waterproof case
- High or low temperature resistant
- Easy installation
Technical Specifications
Sensor | 1/3“ PC1089N |
Video system | NTSC |
DPS | NVP2610 |
Viewing angle | 170° |
Pixel size | 6.35×7.4 µm |
Minimum illumination | 0.1 LUX |
Dimensions | 39×45 mm |
Rear View Camera
Technical Specifications
Image sensor | CMOS | |
Video system | NTSC | |
Resolution | 480 TV lines | |
Minimum illumination | 0.3 lux | |
Lens angle | 170° | |
IR LEDs |
no | |
Parking coordinate | yes | |
Working voltage | from 10V to 15V (12V in car) | |
Working temperature | from -20°C to +70°C | |
Waterproof grade IP | IP67 and IP68 | |
Image | mirror | |
Dimensions | 110 mm × 49 mm × 39 mm |
Note! This camera is not meant for constant connection to car's electrical system. Power supply should be organized in such way that the camera switches on only when it is necessary (e.g. when reversing). We also recommend using voltage converter 12 V to 7 V.
Package Content
Specifications
Camera Connection Kit is compatible with |
|
