Front View Camera Connection Adapter for BMW CIC- HIGH(NBT)

ID: 869801
ID: 869801 0.6 kg
This adapter allows to connect front and rear view cameras to BMW cars with CIC- HIGH(NBT) head units. Equipped with active parking guidelines function.
Discontinued
Find substitute
Discontinued
Find substitute
Add to wishlist
Suggest your price
Impossible to estimate the shipping cost
Overview
Specifications
Substitution
Delivery
Payment
Warranty
Overview

This adapter is used to connect rear view and front view cameras to OEM monitors of BMW cars, equipped with CIC- HIGH(NBT) head unit.

Equipped with active parking guidelines function (PAS).

Front View Camera Adapter for BMW
Additional Features

  • Active parking guidelines (PAS)
  • Support of PDC

Front View Camera Adapter for BMW
Technical Specifications

  • Inputs:
    • AV input× 2
    • RGB input
    • CVBS input for front view camera
    • Rear view camera input
  • Outputs:
    • LCD output
  • Model selection by DIP switches
  • Automatic display of rear view camera image when reversing

Front View Camera Adapter for BMW
Compatibility

Brand Series Body Display size Model Years System
From To
BMW 1 Series F20 6,5″ 2012 2017 CIC- HIGH(NBT)
(6pin LVDS connector)
8,8″
10,2″
3 Series F30 / F31 8,8″
10,2″
5 Series F10 / F11 6,5″ 2012
8,8″
10,2″
5 Series GT F07 6,5″
8,8″
10,2″
6 Series F12 / F13 6,5″
8,8″
10,2″
6 Series GC   6,5″
8,8″
10,2″
7 Series F01 / F02 6,5″
8,8″
10,2″
X3 F25 6,5″
8,8″
10,2″
i8   8,8″ 2015
X5 F15 8,8″ 2013
X6 F16 8,8″ 2014
Mini Cooper F56 2014

Note! NBT EVO system is not supported!


CIC- HIGH(NBT) head unit

The photo is provided for reference only. Appearance of the control panel and monitor may slightly differ depending on the car model.

Front View Camera Adapter for BMW
Manuals

Front View Camera Adapter for BMW

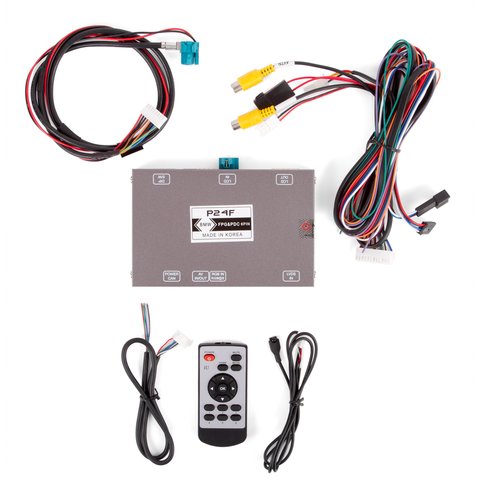

Package Content

  • Main module
  • Remote control
  • Cable set:
    • Power cable
    • LVDS cable
    • AV IN/OUT cable
    • IR cable
    • Rear view camera connection cable
*Product package content and appearance may differ from those presented on the website and depend on video interface version. Please, ask sales manager before purchase.
Note! The video interface must be installed only by the high skilled specialists. In case the device is installed incorrectly the car electronics can be damaged or go out of order.
We are not liable for damage or incorrect operation of the equipment in the case of improper installation.
All rights reserved. This material from car-solutions.com web site may not be published, rewritten or redistributed in whole or part without authorship indicated and backlinks provided.
Specifications
Video Interface is compatible with the following models of Cars
  • BMW
  • Mini
Video Interface is compatible with Head Units
  • Entry
  • EntryNAV
  • NBT
Rear view camera input
  • Yes
Navigation input
  • Yes
DVD/HD/TV connection input
  • Yes
CAN bus support
  • Yes
Modes switch by OEM buttons
  • Yes
Adaptive parking guidelines
  • Yes
Touch screen control of the connected devices
  • No
Built-in navigation
  • No
