GVIF Interface for Honda
id: 844959
GVIF Interface for Honda
Overview
Description
Specifications
Delivery
Payment
Warranty
Discontinued
Overview
0.9 kg Warranty: 12 months
GVIF car video interface for Honda Accord, Odyssey, Crosstour starting from 2013 MY. Plug&Play connection. Read more
Description

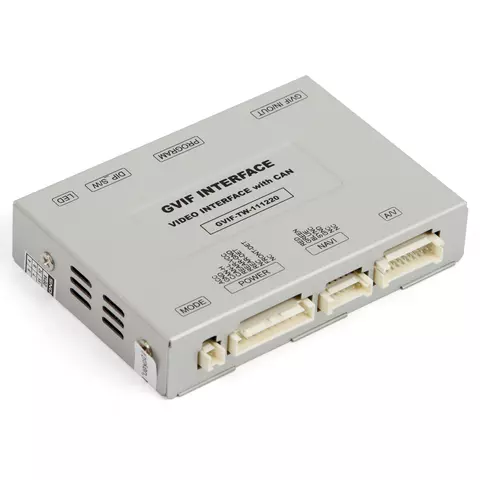

Car video interface is used for connection of additional video devices, for example, navigation box, reverse camera, front view camera, DVD or HD player, to OEM monitor. GVIF is designed for Honda of 2013 and following MY.
The video interface offers Plug&Play connection.
Car GVIF Interface
Specifications
- Inputs
- A/V (for external video devices connection) × 2
- CVBS input (for reverse and front view cameras) × 2
- Analaog RGB input (for navigation box)
- LVDS input
- Outputs
- CVBS output (for headrest monitors connection) × 2
- Audio output
- LVDS output
- Power
- Input power: 8 V ∼ 24 V DC
- Max. power consumed: 12 W
- Input mode switch
- By remote button
- Possibility to select car model by the DIP-switches
Video Interface Connectors
Car GVIF Interface
Compatibility
| Car brand | Model | Model years | |
|---|---|---|---|
| From | To | ||
| Honda | Accord | 2013 | – |
| Crosstour | |||
| Odyssey | 2014 | ||
GVIF Interface
Manuals
Car GVIF Interface
Package Content
- GVIF interface module
- OSD keypad
- Cables set:
- Power
- A/V
- Cable with remote modes switch button
- RGB
If you have questions concerning this product or want to share your experience of its installation or application, visit our forum.
*Product package content and appearance may differ from those presented on the website and depend on video interface version. Please, ask sales manager before purchase.
Note! The video interface must be installed only by the high skilled specialists. In case the device is installed incorrectly the car electronics can be damaged or go out of order.
We are not liable for damage or incorrect operation of the equipment in the case of improper installation.
We are not liable for damage or incorrect operation of the equipment in the case of improper installation.
All rights reserved. This material from car-solutions.com web site may not be published, rewritten or redistributed in whole or part without authorship indicated and backlinks provided.
Specifications
| Video Interface is compatible with the following models of Cars |
|
| Video Interface is compatible with Head Units |
|
| Touch screen control of the connected devices |
|
| Adaptive parking guidelines |
|
| Modes switch by OEM buttons |
|
| CAN bus support |
|
| Navigation input |
|
| DVD/HD/TV connection input |
|
| Rear view camera input |
|
| Built-in navigation |
|
