HAJA OEM Joystick Adapter for Honda / Acura
id: 836949
Overview
0.3 kg
Availability in stock:
HK
Warranty: 12 months HAJA is an adapter which allows you to control additionally connected devices using the OEM joystick. The device is designed for Honda / Acura models with non-touch screen monitor. Read more
USD 100.00
USD 55.00
Description
HAJA is an adapter which allows you to control additionally connected devices, such as navigation boxes or video sources, using the OEM joystick. Thus, you won't need the remote control to use connected DVD, HD player or TV receiver in the car.
The device is designed for Honda / Acura models with non-touch screen monitor.
You need the adapter because it's impossible to install additional touch screen panel unless you remove the protection shield. Even in such case the touch screen control while driving will be very dangerous.
Features
- Connected devices control via OEM joystick and buttons in cars without OEM touch screen display.
- Compatibility with various models due to adapter setup using Win32 «HAJA manager» software.
- Emulation of common USB HID keyboard and mouse, which allows to use this adapter with any operational systems without prior installation of drivers – Win32, WinCE, Linux, Android, MacOS…
- Separate control of the connected devices without duplication of the commands sending between the OEM and additional devices.
- Control of connected DVD, HD player, TV, DVB-T, DVB-T2 receiver without IR RC. Use Win32 «HAJA manager» software to assign the commands to the adapter.
- Switch between the OEM and aftermarket equipment by OEM button «MAP / GUIDE» (circular switch).
- Automatic pressing the joystick when turning on – sending «OK» command to the OEM system.
- Cursor moving speed setup.
- Built-in RGB switch for easy installation of the external navigation (you will need additional video interface if you want to connect more than 1 device. Video interface is not included in the package).
- You can select which navigation will start when power is on (ACC) – OEM / external navigation.
- Possibility of separate control of three connected devices (you will need additional video interface if you want to connect more than 1 device. Video interface is not included in the package).
- Control of the external video interface-switch of the video signals – sending impulse to switch video inputs.
- Possibility to connect up to 4 devices, not including the aftermarket rear view camera.
- Doesn't interfere with the OEM equipment operation logic – automatic switch to the OEM rear view camera.
- Power control of the connected devices.
- Sending commands to turn off the connected devices via USB, IR channels – «soft» turn-off.
- Possibility to update via USB port to extend functionality and fix bugs.
- You can adjust and upgrade firmware of the devices without 12 V power. The devices will be powered directly via USB port.
Technical Specifications
Inputs | RGB | for OEM navigation box connection |
JOG | for OEM joystick connection | |
REAR | for OEM reverse cameras work/aftermarket camera installation | |
IR IN | for IR receiver connection and adapter programming | |
RGB | for connection of aftermarket navigation box or any other device with RGB output | |
Outputs | RGB | for connection to the OEM monitor |
JOG | for connection of the OEM joystick to the OEM navigation module | |
MODE | for control of the aftermarket video interface (switch between the video inputs) | |
IR WIRE1 | direct output for connected devices control by wire (transfer of the programmed commands from IR remote control) | |
IR WIRE2 | inverted output for connected devices control by wire (transfer of the programmed commands from IR remote control) | |
IR LED | for control of the external devices by the connected IR-LED (transfer of the programmed commands from IR remote control) | |
POWER | for connection of the additional devices and power control (max. load current 2.5 A) | |
Power | Input voltage | 8 V DC ~ 36 V DC |
Power consumption (max) | 3 W | |
Power consumption (in stand-by mode) | 0 W | |
Modes switch | By OEM button | MAP / GUIDE |
Compatibility
Honda
Model | Model years | |
---|---|---|
From | To | |
Accord | 2007 | 2009 |
Civic Type R | 2007 | |
Civic UFO | 2007 | |
Inspire | 2007 | |
Legend | 2006 |
Acura
Model | Model years | |
---|---|---|
From | To | |
MDX | 2007 | 2009 |
RDX | 2007 | |
RL | 2005 |
Monitors Appearance
Monitor and joystick in Honda | Monitor and joystick in Acura |
The appearance of the monitor and joystick may differ, depending on the car model and model year.
Package Content
- Adapter module

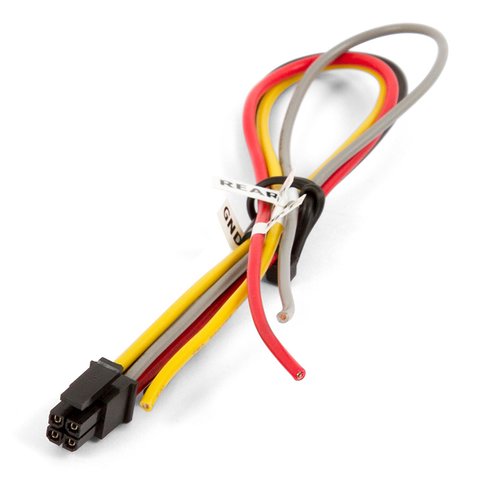

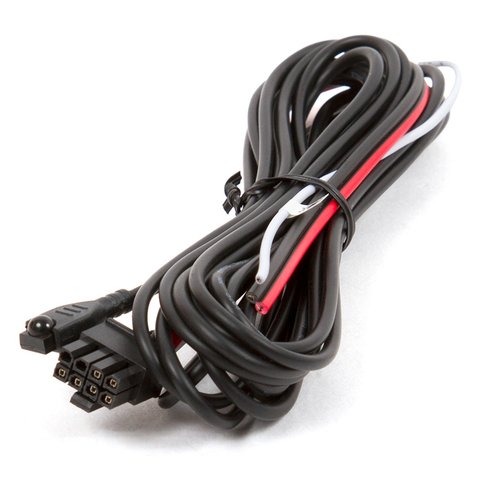

- Power cable
- Cable for connection to joystick + RGB

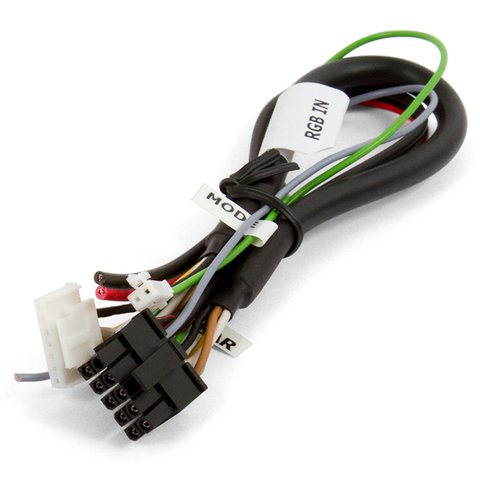

- Cable for connection of the navigation box/interface
- IR cable
- Mini-USB cable
If you have questions concerning this product or want to share your experience of its installation or application, visit our forum.
*Product package content and appearance may differ from those presented on the website and depend on video interface version. Please, ask sales manager before purchase.
