Lexus CT200h ES250 ES300h ES350 NX200t NX300h Reverse Camera Kit With 24 Pin Cable Wire Harness
Overview
Description
This kit includes a 170° wide-angle reverse camera, connection cables (6 m / 20 ft), and a 24-pin wire harness that ensures seamless integration into your car`s system. Fits Lexus CT200h ES250 ES300h ES350 NX200t NX300h cars with GEN8 13CY/15CY media-navigation systems.
After installation, the reverse camera image will appear automatically on your factory monitor every time you reverse (the parking assistance lines feature is supported).
Checking for compatibility is quite simple: if the joystick is shaped as a disk or a puck and the main menu is of the "carousel" type then you can use this cable in your car.
Image from the rear view camera will automatically be displayed on the screen when reversing. The device is connected to the 24 pin socket (as shown in the connection diagram). After connection all OEM devices that work using this socket will not be disturbed and will continue to work as they did prior to the connection. PDC function (in connection with OEM parktronic system) is supported.
Note! Power of the additional rear view camera should be taken from the ACC line (first key turn), otherwise the camera input will not be active. Depending on the type of camera (more specifically, on the voltage required for work) +6 V output voltage of the monitor may be used. If the camera requires more than +6 V it should be connected to the ACC line.
Compatible Models
| Model | Model year | Head unit | Additional compatibility condition | |
|---|---|---|---|---|
| From | To | |||
| CT200h | 2014 | 2019 | FujitsuTen GEN8 13CY/15CY EU 8th generation, car models of the EU market |
Cars with OEM navigation system Cars without OEM navigation system Cars equipped with Lexus Display Audio Controller |
| ES250 | 2018 | |||
| ES300h | 2015 | |||
| ES350 | ||||
| IS200t | 2019 | |||
| IS220d | 2014 | |||
| IS250 | ||||
| IS300 | 2015 | |||
| IS300h | ||||
| NX200t | 2014 | 2018 | ||
| NX300h | ||||
| RC200t | 2015 | |||
| RC300h | ||||
| RC F | ||||
| RX200t | 2019 | |||
Note! Pioneer head units are not supported.
Note! These photos are provided for reference only. Joystick may look differently depending on the car model.
Installation Guide
Package Content

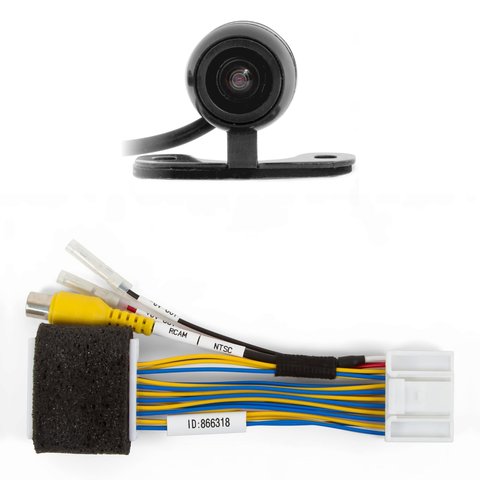

- Reverse Camera (720P) with 4PIN connector - 1 pc.
- Wire Harness (24-pin) - 1 pc.
- Connection Cables (6 m / 20 ft)
Specifications
| Camera Connection Kit is compatible with Head Units |
|
