MOST Video Interface for Audi MMI 3G+ with TV/Video in Motion Module
Overview
Description
Car multimedia kit consisting of car video interface and TV/Video in Motion adapter for Audi equipped with new MMI 3G+ multimedia system starting from 2009 model year. The car must be equipped with OEM TV receiver input.

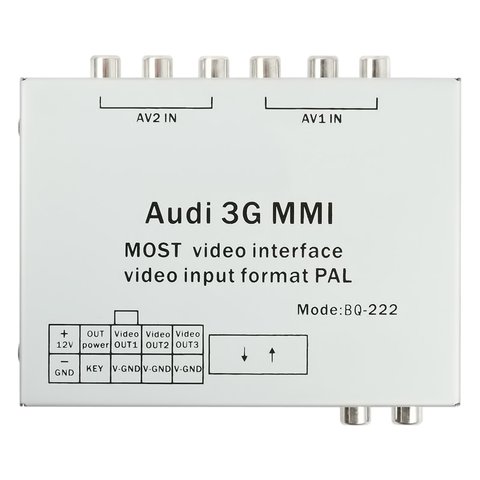

MOST video interface allows you to connect external video sources such as DVD player, TV receiver, rear view camera, etc. to your car OEM monitor. Interface emulates OEM TV receiver and you can select video input by OEM MMI buttons.

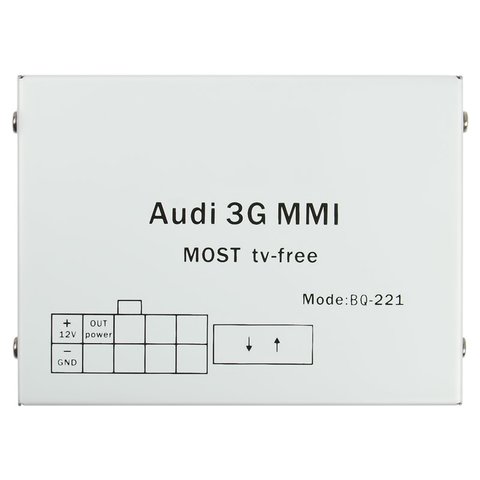

Car Video in Motion interface* (TV Free adapter) is designed for enabling image display from connected video devices on OEM monitor while car is in motion. Adapter allows watching video from OEM AV input (from connected aftermarket DVD player, TV tuner, DVB-T receiver, etc.) on the built-in car monitor when car is in motion and not only when handbrake is pulled up. TV in Motion interface is cut into MOST bus behind the head unit and filtrates velocity signal which is formed for blocking the above mentioned video sources.
Car Video Interface for Audi MMI 3G+
Specifications
- Watching image from connected external video sources on OEM monitor (PAL video system)
- Picture in motion display
- Video source selection by OEM MMI buttons
- Does not require additional programming
- Inputs
- 2 A/V inputs (for external video sources)
- Input for aftermarket navigation unit connection
- Input for aftermarket rear view camera connection
Car Video Interface for Audi MMI 3G+
Compatibility
| Audi model | Head unit | Model year |
|---|---|---|
| A4 | MMI 3G+ | 2009∼ |
| A5 | ||
| A6 | ||
| A8 | ||
| Q5 | ||
| Q7 |
Car Video Interface for Audi MMI 3G+
Manuals
Car Video Interface for Audi MMI 3G+
Package Content
- Car video interface module
- TV in motion adapter box
- Connection cables
*Note! In some countries watching video when the vehicle is in motion is forbidden. Therefore, TV/Video in Motion interface installation and usage shall be performed on the user's responsibility.
We are not liable for damage or incorrect operation of the equipment in the case of improper installation.
Specifications
| Video in Motion Adapter is compatible with the following models of Cars |
|
| Video in Motion Adapter is compatible with Head Units |
|
| Video in Motion Adapter is compatible with Video In Motion |
|
| Possibility to deactivate TV Free function |
|
| AV Inputs |
|
| Bus |
|
