Multifunctional Universal Touch Screen Controller TSC-207IM
Overview
Description
Universal touch screen controller is designed for touch screen control of additionally connected devices, including navigation box, on additionally installed touch screen panel. The device reads out coordinates of point pressed on the touch screen and transfers them to external video source.
The controller fits most monitors with resistive touch screen, where 4-wired or 8-wired resistive touch screen panels with paired signals 4x2 are used. It means touch screen controller can be applied in 99.99% cases!
Note! Only the version with additional touch screen panel support is available. Function of simultaneous work of the OEM and additional touch screen panel is not available.
Universal Touch Screen Controller
Compatible Navigation Boxes
- CS9100 *
- CS9200 *
- WP9100R (RV) *
- WP9100 Scale *
- WP9200 *
- Element F1 *
- Element F10 *
- KENWOOD KNA-G420
- Element F15 *
- Phantom SPT-100 *
- Phantom SPT-200 *
- WEG-160 *
- LM7200
- GVN 53
- Mircom M500 *
- GVN54
* Select Kenwood protocol in navigation box settings..
Note! On Car Solutions forum you will find updates and new firmwares for the controller. There is also possibility to discuss the controller operation or make offers on its improvement.
Universal Touch Screen Controller
Package Content

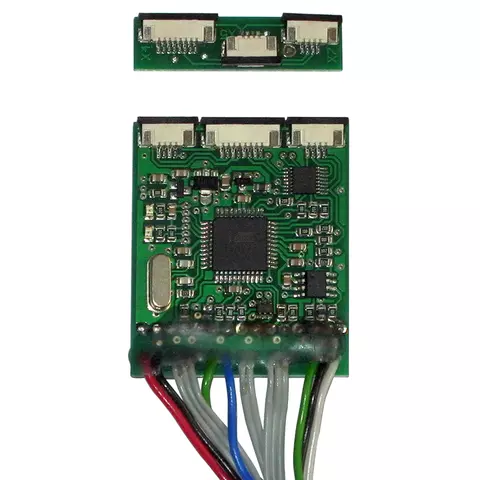

- Touch screen controller main board
- Adapter for flat cables connection
- Flat cables set
- IR emitter
Specifications
| Controller is compatible with |
|
| Functions |
|
