Multimedia System on Android 7.1 for Lexus CT/RX OEM Monitors with Touchpad and Navigation
Overview
Description
Multimedia system with built-in navigation allows connecting external video devices to the OEM monitor for Lexus CT/RX cars. You can connect the device easily connected using Plug&Play method. This system works on OS Android 7.1, which allows using applications from Google Play Market. The system is equipped with inputs for rear view camera, front view camera or TV tuner. All of the original multimedia system functions are preserved after connection .
Multimedia system supports Miracast function (smartphone screen mirroring), which allows mirroring your phone screen to OEM monitor. You can also use Apple CarPlay (optional, wireless connection).
Features
- Easy Plug&Play connection
- Supports navitaion applications from Play Market
- 2 GB RAM (3 GB optional)
- 32 GB eMMC
- Slot for MicroSD (up to 64 Gb)
- Video playback in motion
- Ability to connect DVR
- Input for additional monitors/video devices
- Built-in phone mirroring function (OS Android and iOS)
- Mediacontent playback
- Internet connection via Wi-Fi
- Input for rear/front view camera
- Control using touchpad
- USB-input
- Apple CarPlay (optional)
Compatibility
| Brand | Series | Production year | Additional compatibility condition | |
|---|---|---|---|---|
| From | To | |||
| Lexus | CT | 2011 | 2012 | Head unit with touchpad and navigation |
| RX | 2009 | 2012 | Head unit with touchpad and navigation | |
The photo is provided for reference only. Appearance of the control panel and monitor may slightly differ depending on the car model.
Technical specifications
| System | OS | Android 7.1 |
| RAM | 2 GB | |
| eMMC | 32 GB | |
| Outputs | LVDS | 1 |
| Stereo audio | 1 | |
| Inputs | ||
| AV | 2 | |
| USB | 1 | |
| Connection | ||
| GPS | yes | |
| Wi-Fi-module | yes | |
| General | Cold start | 40 sec |
| Hot start | 6 sec | |
| Microphone | yes (you can also use external mic) | |
| Software update | via Wi-Fi |
Mode switch
- Mode 1:Use «OK» button on steering wheel to choose AUX or USB-AUX in menu
- Mode 2: Select AUX on OEM monitor or mediasystem, to switch to Android mirroring
- Mode 3: Hold "Hang up" or NAVI button for 3 seconds, to switch to Android mirroring
- Mode 4: Use original car voice button to switch to AUX
Package content
- Multimedia system

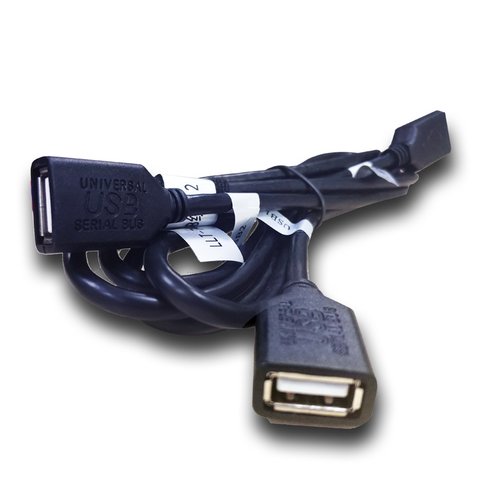

- Set of connection cables
- GPS-antenna
- Microphone
Note! Navigation software, touch screen panels, controllers, are not included in the package.
Note! Navigation box installation should be performed by well-trained specialist. Otherwise, we are not liable for equipment damage or incorrect operation.
Specifications
| Navigation Box is compatible with the following models of Cars |
|
| Operation System |
|
| USB Ports |
|
| Wi-Fi Connection |
|
| Bluetooth Connection |
|
| AV inputs |
|
| RAM size |
|
| ROM size |
|
