Navigation and Multimedia Kit for Audi MMI Touch Based on CS9500H
Overview
Description

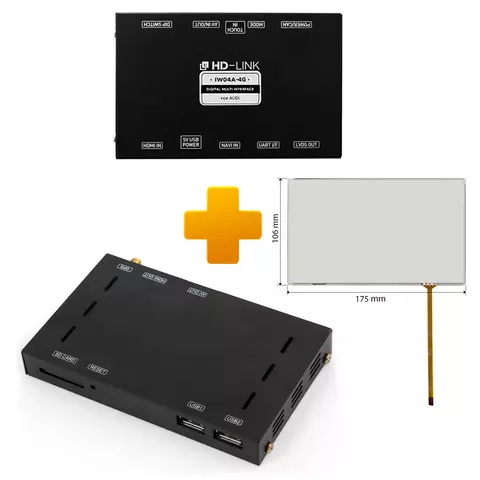

Navigation system with HDMI for Audi MMI Touch cars. Includes a CS9500H navigation box, an 8" touch screen panel and an HDMI video interface.
CS9500 navigation box is designed to connect navigation to the OEM car monitor.
Car video interface allows you to connect additional video devices, such as rear view camera, front view camera, DVD/HD player to your OEM car monitor. This video adapter has HDMI input which allows you to connect aftermarket navigation and video sources via HDMI, which in its turn offers image of higher quality.
Active parking guidelines (PAS) function will make parking easy even in the most difficult places.
Why do you need a navigation box?
It's quite simple, really: it will help you to quickly get your bearings in an unfamiliar place and find an optimal route to your destination. All information and hints about the route will be on your car monitor. There's no need to connect a smartphone and spoil the look of your car with cables or dock station.
Navigation System on CS9500H
Features
- Play any audio and video content without converting
- USB inputs
- HDMI output
- Rear view camera mode: image from the rear camera is automatically displayed when the car is reversing
- Front view camera mode: image from the front camera is automatically displayed after a set time on the timer (5, 10, 15 seconds)
- Output navigation resolution
- 800×480
Navigation System on CS9500H
Technical Specifications
| System: | Processor | TCC8801 2.12 GHz |
| OS | WIN CE 6.0 R3 Core | |
| RAM | DDR 2 512 MB | |
| ROM | Nand Flash 512 MB | |
| Language | English, Russian Korean |
|
| GPS | Supported systems | GPS |
| Chipset | U-Blox 6 | |
| Outputs | HDMI |
1 |
| Data | USB | |
| USB 2.0 × 2 | ||
| Memory card slot | SD (4/8 GB) | |
| General | Power | 10-18 V |
Navigation System on CS9500H
Compatibility
| Class | Model year | System | Photo | |
|---|---|---|---|---|
| From | To | |||
| A6 (C8) | 2015 | – | MMI Touch |  |
| A7 (4G) | ||||
Navigation System on CS9500H
Package Content
Specifications
| Navigation Kit is compatible with Spare parts |
|
| Navigation Kit is compatible with |
|
| Operation System |
|
| RAM size |
|
| USB Ports |
|
| Wi-Fi Connection |
|
| Bluetooth Connection |
|
| DVD/HD/TV connection possibility |
|
| AV Inputs |
|
| Rear View Camera Connection Possibility |
|
| Processor frequency |
|
| ROM size |
|
| GPS Receiver |
|
