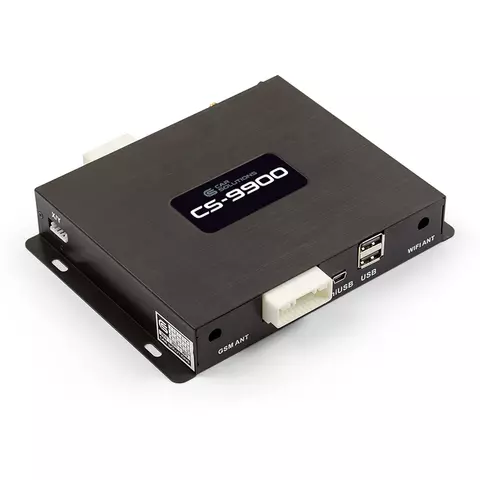

Navigation System for Toyota/Lexus Based on CS9900 (Android)
Overview
Description
The navigation system is designed for Toyota/Lexus, equipped with the OEM colour (including touch screen) monitors and navigation. As a result, you receive fully functional navigation with the required interface language and maps, and touch screen control (for touch screen monitors). For monitors without touch screens you will need a remote control with touchpad or touch screen panel installation.
The navigation box works on Android platform allowing you to expand the device functionality by various programs and application from Google Play.
Note! To install CS9900 navigation system in the Toyota / Lexus cars with GVIF (most often, these are the models after 2006 MY) you will additionally need GVIF interface for Lexus. Refer to the manual to define whether your car has GVIF or RGB signal.
* As a result of OEM navigation system disconnection of the in Toyota / Lexus cars the calendar and the related service reminders will not be displayed on the OEM computer.
Compare CS9100/CS9200/CS9900/KD-900/Andromeda navigation boxes.
Toyota/Lexus Navigation System Based on CS9900
Additional Features
Navigation Box Functionality Expansion
- Internet connection
Connection to the Internet via 3G modem (included in the package). Wi-Fi connection with the help of USB adapter (included in the package). - USB devices connection. You can connect 4 USB devices with more than 500 mA current consumption without USB booster
Expanded Multimedia Features
You can install a lot of programs and applications (be it games or widgets) which would significantly expand multimedia features of your navigation box and car monitor.
OEM Antenna Connection
Specially developed adapter allows you to connect navigation box to OEM GPS antenna which provides high quality signal and easier installation.
Toyota/Lexus Navigation System Based on CS9900
Compatibility
Lexus
Model | Model year | Model | Model year |
---|---|---|---|
ES 300 | IS 300 SportCross | ~2009 | |
ES 330 | IS 350 | ~2009 | |
ES 350 | LS 400 | ||
GS 300 | LS 430 | ||
GS 350 | ~2009 | LS 460 | ~2009 |
GS 400 | LS 460L | ~2009 | |
GS 430 | LS 600hL | ~2009 | |
GS 450h | ~2009 | LX 470 | |
GX 470 | LX 570 | ~2009 | |
IS CV | ~2009 | RX 300 | |
IS F | ~2009 | RX 330 | |
IS 220 | ~2009 | RX 350 | ~2009 |
IS 250 | ~2009 | RX 400h | |
IS 250c | ~2009 | SC 430 | |
IS 300 | ~2009 | ||
Toyota
Model | Model year | |
---|---|---|
From | To | |
Avalon Limited | ~ | 2009 |
Avalon XL | ||
Avalon XLS | ||
Crown | ||
Highlander | 2004 | 2007 |
Highlander Hybrid | 2006 | 2007 |
Highlander Hybrid Limited | 2006 | 2007 |
Highlander Limited | 2004 | 2007 |
Land Cruiser | ~ | 2009 |
Prius | ||
Wish |
Toyota/Lexus Navigation System Based on CS9900
Technical Specifications
System | Processor | A8 / Cortex 1 GHz |
OS | Android 2.3.7 | |
Language | Multilanguage support | |
Memory | ROM | 4 GB |
RAM | DDR3 1 GB | |
Memory cards | MMC, miniSD, SD, SDHC up to 32 GB (depends on the manufacturer) |
|
Video outputs | RGB supported resolutions: |
480×234, 640×480, 800×480 |
RCA | CVBS | |
Audio outputs | RCA | linear stereo |
TS 3.5 mm | 0.25 W dynamics socket (mono) | |
Audio input | TS 3.5 mm | for microphone |
Data | USB (4) | A type (for external devices 5 V / 1 A) |
Control | Radio remote controller | with touch panel |
Touch screen panel | Direct connection | |
Car OEM control buttons | Via touch adapter | |
GPS | Chipset | MTK MT3329T |
Channels | 66 | |
Frequency | L1 1575,42 MHz | |
Sensitivity | -165 dB | |
Reacquisition | 1 s | |
Protocol | GPGGA (1 time/1 s), GPGSA (1 time/5 s), GPGSV (1 time /5 s), GPRMC (1 time /1 s), GPVTG (1 time/1 s), (additionally GLL or MTK NMEA Command) |
|
Hot/warm/cold start | 1 s / 28 s /30 s | |
Antenna | SMA, active | |
Power | 10-30 V DC | – |
Dimensions | Main board dimensions (with holders) | 166 mm × 144 mm × 28 mm |
Weight | 270 g |
Toyota/Lexus Navigation System Based on CS9900
Manuals
- Download manual for CS9900 navigation box
- Download pinout diagram of CS9900 navigation box connectors
- Download manual on defining GVIF signal in your car
Toyota/Lexus Navigation System Based on CS9900
Package Content
- CS9900 navigation box main board
- 3G modem
- USB Wi-Fi adapter
- Remote controller
- GPS antenna
- External speaker
- 8 GB memory card
- Connection cables set
- RGB cable
- Data cable
Note! Navigation box installation shall be performed by well-trained specialist. Otherwise, we are not liable for equipment damage or incorrect operation.
