Navigation System for Toyota Touch & Go on CS9200 Platform
Overview
Description
Navigation system based on CS9200 box is aimed at expanding navigation functions of Toyota cars with Touch & Go and Touch & Go Plus monitors! You just connect this navigation box to the monitor and receive fully functional navigation with the required interface language and maps, and touch screen control. The device provides Plug&Play connection without damaging OEM wires.
*Note! MAP/Nav button on the monitor is the basic requirement for compatibility.
CS9200 navigation box supports software from Navitel, IGo8 and other programs operating under WIN CE 6.0. In case a new version of the navigation program is released, it can be easily updated by rewriting it on SD card.
Compare CS9100/CS9200/CS9900/KD-900/Andromeda navigation boxes.
Navigation System for Toyota
Additional Features
Navigation Box Functionality Expansion
- Internet connection
We recommend purchasing 3G USB modem (this or this) for Internet connection. It is specially prepared for operation with navigation box. - USB devices connection. You can connect 2 USB devices with more than 500 mA current consumption without USB booster.
- Additional devices connection:
- Radar detector
- USB gyroscope
- TMC antenna to receive traffic information
- USB dongle for Wi-Fi (e.g., via phone connection)
- 3G modem 1 / 3G modem 2
- Bluetooth module
Navigation System for Toyota
Compatibility
Toyota Touch & Go / Touch & Go + Monitors
Toyota model | Model Years | Monitor | |
---|---|---|---|
From | To | ||
Auris | 2010 | 2014 | Touch & Go Touch & Go Plus |
Auris Hybrid | 2010 | 2014 | |
Avensis | 2011 | 2014 | |
Camry | 2011 | 2014 | |
Camry Hybrid | 2012 | 2014 | |
Corolla | 2011 | 2013 | |
GT86 | 2012 | 2014 | |
Highlander | 2012 | 2014 | |
Highlander Hybrid | 2012 | 2014 | |
Hilux | 2011 | 2014 | |
Matrix | 2011 | 2014 | |
Prius | 2011 | 2014 | |
Prius C | 2012 | 2014 | |
Prius MPV+ | 2012 | 2014 | |
Prius Plug-in Hybrid | 2012 | 2014 | |
RAV4 | 2010 | 2014 | |
Tacoma | 2012 | 2014 | |
Venza | 2013 | 2014 | |
Verso | 2009 | 2014 | |
Verso S | 2010 | 2014 | |
Yaris | 2011 | 2014 | |
Yaris Hybrid | 2012 | 2014 |
Navigation System for Toyota
Specifications
System | Processor | ARM11 Samsung S3C6410 800 MHz |
OS | WIN CE 6.0 | |
Language / localisation | English / English (Russian) | |
Memory | ROM | 128 MB |
RAM | DDR 128 MB | |
Memory cards | MMC, miniSD, SD, SDHC up to 32 GB (depends on the manufacturer) |
|
Video outputs | RGB supported resolutions: |
320×240, 400×234, 480×234, 480×272, 640×240, 640×480, 800×480 |
RCA | NTSC 3,58 MHz | |
Audio outputs | RCA | stereo |
TS 3.5 mm | 0.25 W dynamics socket | |
Data | USB (2) | A type (for external devices 5 V / 1 A) |
Control | Touch screen | via adapter (included in the package) |
GPS | Chipset | MTK MT3329T |
Channels | 66 | |
Frequency | L1 1575,42 MHz | |
Sensitivity | -165 dB | |
Reacquisition | 1 s | |
Protocol | GPGGA (1 time/1 s), GPGSA (1 time/5 s), GPGSV (1 time /5 s), GPRMC (1 time /1 s), GPVTG (1 time/1 s), (additionally GLL or MTK NMEA Command) |
|
Hot/warm/cold start | 1 s / 28 s /30 s | |
Antenna | SMA, active | |
Power | 10-30 V DC | Can be connected to constant power supply. Sleep mode when ignition is switched off can be activated. |
Dimensions | Main board dimensions (with holders) | 135 mm × 127 mm × 26 mm |
Navigation System for Toyota
Manual
Navigation Software Installation Tips *
- Default way for navigation software installation on memory card: Navi\Navi.exe
- Navigation software settings:
- GPS receiver COM port: COM1
- GPS receiver rate: 9600
- Video output resolution: 480×234
Navigation System for Toyota
Package Content

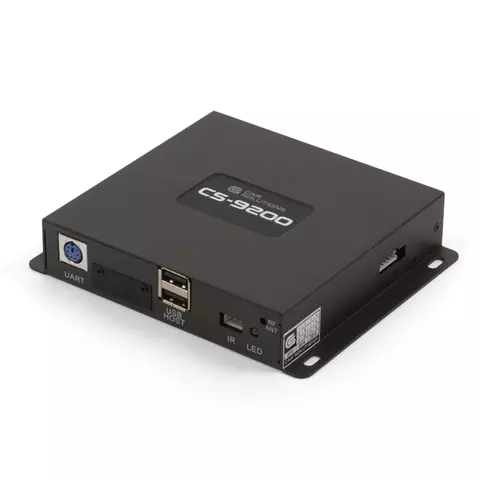

- CS9200 navigation box
- GPS antenna
- External speaker
- Power cable 2.5 m
- Connection cables with adapter
- Memory card 4 GB
* Navigation software is not included in the package.
Note! Navigation box and navigation software installation shall be performed by well-trained specialist. Otherwise, we are not liable for equipment damage or incorrect operation.
