Navigation System for Toyota Touch&Go Based on CS9200 (Car Solutions Edition)
Overview
Description
Navigation system based on CS9200 box is aimed at expanding navigation functions of Toyota cars with Touch & Go and Touch & Go Plus monitors! You just connect this navigation box to the monitor and receive fully functional navigation with the required interface language and maps, and touch screen control. The device provides Plug&Play connection without damaging OEM wires.
*Note! MAP/Nav button on the monitor is the basic requirement for compatibility.
*Note! Before purchase, please, inform the manager about the manufacturer of your monitor. We will prepare the package for installation directly for your head unit.
CS9200 navigation box supports software from Navitel, IGo8 and other programs operating under WIN CE 6.0. In case a new version of the navigation program is released, it can be easily updated by rewriting it on SD card.
Compare CS9100/CS9200/CS9900/KD-900/Andromeda navigation boxes.
Navigation System for Toyota
Advantages
- Navigation image activation by OEM button (double press Mute button, Map button for Panasonic head units)
- Voice prompts playback via car speakers
- Drag and scrolling functions on the touch screen
Navigation System for Toyota
Additional Features
Navigation Box Functionality Expansion
- Internet connection
We recommend purchasing 3G USB modem (this or this) for Internet connection. It is specially prepared for operation with navigation box. - USB devices connection. You can connect 2 USB devices with more than 500 mA current consumption without USB booster.
- Additional devices connection:
- USB dongle for Wi-Fi (e.g., via phone connection)
- 3G modem 1 / 3G modem 2
Navigation System for Toyota
Compatibility
Toyota Touch & Go / Touch & Go + Monitors
 |
 |
 |
 |
| Toyota model | Model Years | Monitor | |
|---|---|---|---|
| From | To | ||
| Auris | 2010 | 2014 | Touch & Go Touch & Go Plus |
| Auris Hybrid | 2010 | 2014 | |
| Avensis | 2011 | 2014 | |
| Camry | 2011 | 2014 | |
| Camry Hybrid | 2012 | 2014 | |
| Corolla | 2011 | 2013 | |
| GT86 | 2012 | 2014 | |
| Highlander | 2012 | 2014 | |
| Highlander Hybrid | 2012 | 2014 | |
| Hilux | 2011 | 2014 | |
| Matrix | 2011 | 2014 | |
| Prius | 2011 | 2014 | |
| Prius C | 2012 | 2014 | |
| Prius MPV+ | 2012 | 2014 | |
| Prius Plug-in Hybrid | 2012 | 2014 | |
| RAV4 | 2010 | 2014 | |
| Tacoma | 2012 | 2014 | |
| Venza | 2013 | 2014 | |
| Verso | 2009 | 2014 | |
| Verso S | 2010 | 2014 | |
| Yaris | 2011 | 2014 | |
| Yaris Hybrid | 2012 | 2014 | |
How to Identify the Manufacturer of Touch&Go (Plus) Monitor
*Note! Before purchase, please, inform the manager about the manufacturer of your monitor. We will prepare the package for installation directly for your head unit.
Navigation System for Toyota
Specifications
| System | Processor | ARM11 Samsung S3C6410 800 MHz |
| OS | WIN CE 6.0 | |
| Language / localisation | English / English (Russian) | |
| Memory | ROM | 128 MB |
| RAM | DDR 128 MB | |
| Memory cards | MMC, miniSD, SD, SDHC up to 32 GB (depends on the manufacturer) |
|
| Video outputs | RGB supported resolutions: |
320×240, 400×234, 480×234, 480×272, 640×240, 640×480, 800×480 |
| RCA | NTSC 3,58 MHz | |
| Audio outputs | RCA | stereo |
| TS 3.5 mm | 0.25 W dynamics socket | |
| Data | USB (2) | A type (for external devices 5 V / 1 A) |
| Control | Touch screen | via adapter (included in the package) |
| GPS | Chipset | MTK MT3329T |
| Channels | 66 | |
| Frequency | L1 1575,42 MHz | |
| Sensitivity | -165 dB | |
| Reacquisition | 1 s | |
| Protocol | GPGGA (1 time/1 s), GPGSA (1 time/5 s), GPGSV (1 time /5 s), GPRMC (1 time /1 s), GPVTG (1 time/1 s), (additionally GLL or MTK NMEA Command) |
|
| Hot/warm/cold start | 1 s / 28 s /30 s | |
| Antenna | SMA, active | |
| Power | 10-30 V DC | Can be connected to constant power supply. Sleep mode when ignition is switched off can be activated. |
Navigation System for Toyota
Manual
Navigation Software Installation Tips *
- Default way for navigation software installation on memory card: Navi\Navi.exe
- Navigation software settings:
- GPS receiver COM port: COM1
- GPS receiver rate: 9600
- Video output resolution: 480×234
Navigation System for Toyota
Package Content
- CS9200 navigation box
- Universal touch screen adapter
- AVP manager module

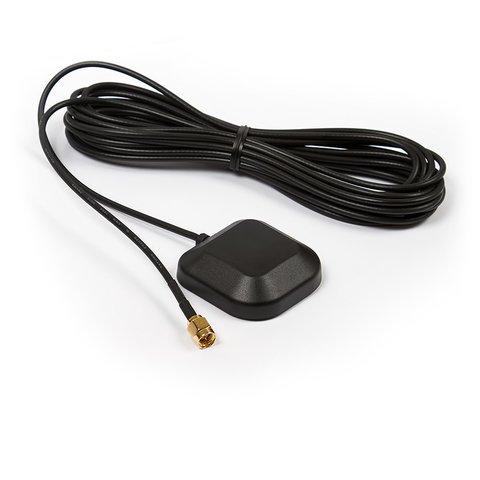

- GPS antenna

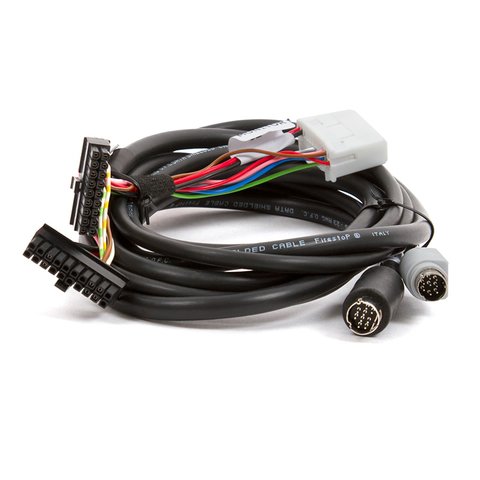

- Connection cables
- Memory card 8 GB
* Navigation software is not included in the package.
Note! Navigation box and navigation software installation shall be performed by well-trained specialist. Otherwise, we are not liable for equipment damage or incorrect operation.
