Navigation System for Volkswagen

id: 843662
4.5 kg Warranty: 12 month (s)
2-in-1 device: navigation box and video interface, which allows to connect rear view camera and additional video devices such as DVD player or TV receiver to the OEM car monitor. It fits various Volkswagen models.
Discontinued
Contact
sales team
Discontinued
Contact
sales team
Add to wishlist
Impossible to estimate the shipping cost
Overview
Specifications
Video
Delivery
Payment
Warranty
Overview

This navigation system is a 2-in-1 device: navigation box and video interface, which allows to connect rear view camera and additional video devices such as DVD player or TV receiver to the OEM car monitor. It fits various Volkswagen models.

Navigation System for Volkswagen
Additional Functions

  • Possibility to connect rear view camera
  • Possibility to connect 2 video sources
  • Modes switch by OEM button
  • Dynamic parking guidelines (parking assistance system)

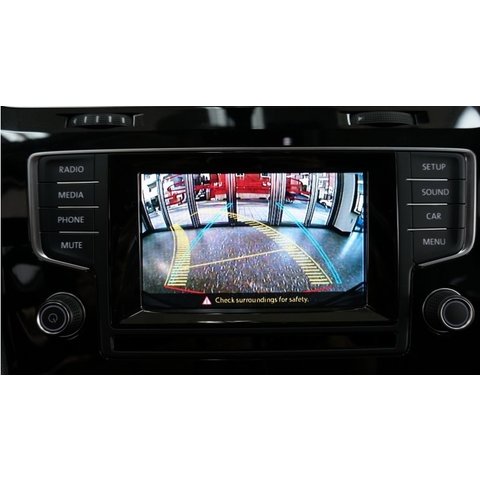

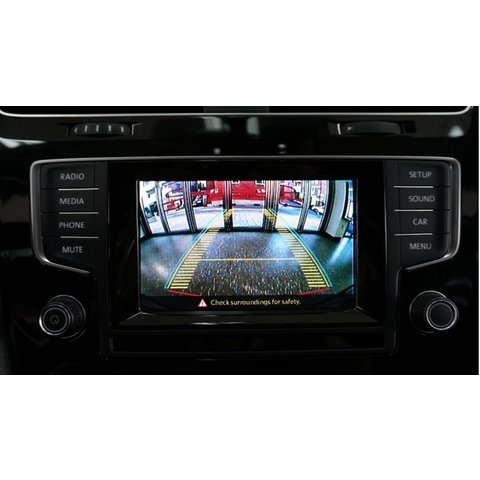

  • Automatic display of rear view camera image while reversing

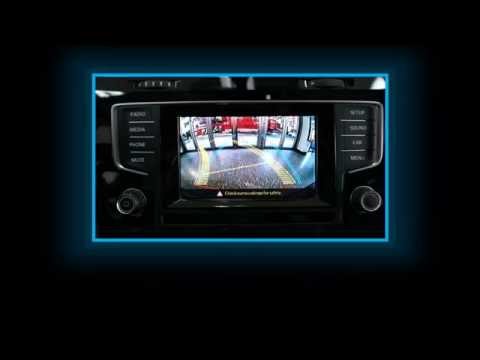

Video

Youtube video

Navigation System for Volkswagen
Technical Specifications

System Processor Telechips TCC8801 (ARM Cortex A8) 2.12GHz
OS Windows CE 6.0
Memory ROM 2 GB NAND Flash
RAM DDR2 512 MB
memory cards SD/SDHC
Video inputs A/V 2
input for rear view camera 1
Video outputs A/V 1
Port USB 2.0
GPS Chipset STA8088FG
General Power 10-16 V
Operation temperature -20°C – +70°C

Navigation System for Volkswagen
Compatibility

Car brand Model Model years Monitor/multimedia system
From To
Volkswagen 2013 5.8" Composition Media
5.8" Discover Media
8" Discover Pro

Navigation System for Volkswagen
Manuals

Navigation System for Volkswagen
Package Content

  • Main module
  • Sub-board
  • Remote modes switch button
  • GPS antenna
  • BT board
  • Microphone
  • Power cable
  • LVDS cable
  • AV/BT cable
  • Speaker
  • Cable for connection to the monitor
  • CAN In/Out cable
  • USB cable
  • Cable for rear view camera connection
  • Multicable
Product specifications, appearance and package content may differ from those presented on the website and can be changed without notice. Please, contact sales manager before purchase.
Note! Car Solutions is not liable for device incorrect operation in case of unauthorised OS upgrade. If you have problems with navigation box original OS operation, describe your situation on our forum, and our technical specialists will provide the solution.
All rights reserved. This material from car-solutions.com web site may not be published, rewritten or redistributed in whole or part without authorship indicated and backlinks provided.
Specifications
Navigation Box is compatible with the following models of Cars
  • Volkswagen
  • Audi
  • Skoda
  • Seat
Navigation Box is compatible with Head Units
  • Composition Media
  • Discover Media
  • Discover Pro
  • MMI Navigation Plus
Operation System
  • Win CE 6.0
RAM size
  • 512 MB
USB Ports
  • 1
Wi-Fi Connection
  • No
Bluetooth Connection
  • Yes
AV inputs
  • Yes
Touch screen control of the connected devices
  • Yes
Adaptive parking guidelines
  • Yes
Modes switch by OEM buttons
  • Yes
CAN bus support
  • Yes
Navigation input
  • Yes
DVD/HD/TV connection input
  • Yes
Rear view camera input
  • Yes
Built-in navigation
  • No
ROM size
  • 2 GB
Processor frequency
  • 2.12 GHz
GPS Receiver
  • STA8088FG
Video
Youtube video
