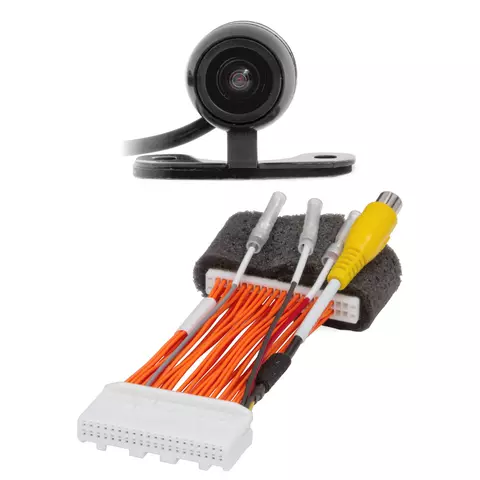

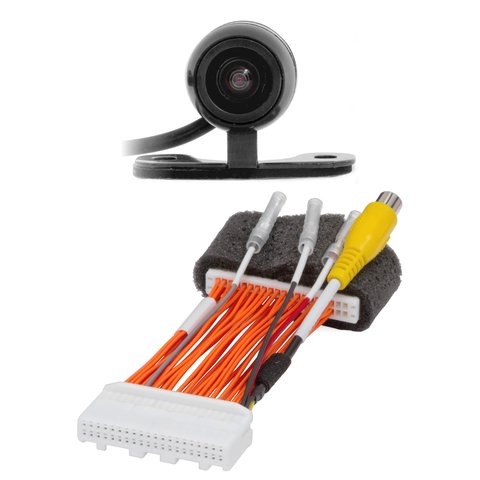

Nissan Leaf Reverse Camera Kit With 40 pin Cable Wire Harness

This kit includes a 170° wide-angle reverse camera, connection cables (6 m / 20 ft), and a 40-pin wire harness that ensures seamless integration into your car`s system. Fits Nissan Leaf and e-NV200 2010 2011 2012 2013 2014 2015 2016 2017 MY with EV GEN1 and EV GEN2 multimedia systems.

Image from the rear view camera will automatically be displayed on the screen when reversing. Dynamic parking lines that will turn with the steering wheel will be displayed on the camera image. Parking lines can be adjusted in the service menu (see parking lines adjustment manual). The device is connected to the 40 pin socket (as shown in the connection diagram). Depending on your car radio model, this socket may be located in a different place from the one shows in the diagram. After connection all OEM devices that work using this socket will not be disturbed and will continue to work as they did prior to the connection.

Note! If your car radio was not installed by the manufacturer, the backup activation signal may be absent from the wires connected to the car radio. For cases like this there’s a grey REV wire in our cable. +12 V should be supplied to this wire when the car is switched to reverse (may be taken from the rear lamp). Also, you may check the connection of this activation signal in the diagnostics menu.

Note! The additionally installed rear view camera should be powered from ACC line (first turn of the key), otherwise the camera input will be not active. Depending on the type of the camera to be connected, namely on the voltage required for the camera, you can use input voltage +6 V, which the monitor produces. In case the camera requires more than +6 V, connect the camera power to ACC line.

Compatible Models

Note! Only cameras in NTSC format are supported.

Package Content

1. Reverse Camera (720P) with 4PIN connector - 1 pc.
2. Wire Harness (40-pin) - 1 pc.
3. Connection Cables (6 m / 20 ft)
