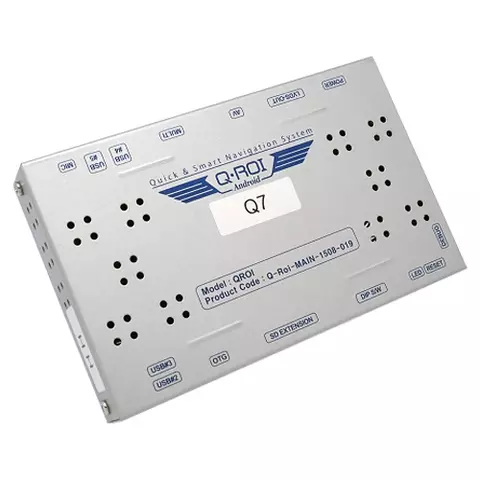

Q-ROI Navigation Box on Android for Audi A4 / Q7 without Cockpit Display
Overview
Description
Q-ROI navigation box is designed to connect navigation to OEM monitors. You will need a video interface for installation. Navigation box works on Android 4.2.2 platform allowing you to expand the device functionality by various programs and application from Google Play. This navigation box is also equipped with a rear view camera input.
Note! If you have doubts whether this navigation box is compatible with your car, please contact our engineers from the technical department.
Note! Video interface is only compatible with cars, not equipped with a cockpit display. Also, the MMI manufacturer should be HARMAN.
Features
- A/V inputs × 3
- Rear view camera input
- Aftermarket navigation on your OEM monitor
- Play media content
- Connect to Internet via Wi-Fi
- USB inputs
- Navigation output resolution: 800×480
Compatibility
| Model | Model year | Head unit | Additional compatibility condition | |
|---|---|---|---|---|
| From | To | |||
| A4 | 2016 | – | MMI Touch | OEM touch pad |
| Q7 | ||||
Technical Specifications
| System: | CPU | Telechips TCC8930 (1GHz Cortex A9 DualCore) |
| OS | Android 4.2.2 Jelly Bean | |
| RAM | DDR 3 1 GB | |
| ROM | 8 GB eMMC | |
| Language | Multilingual | |
| GPS | Supported systems | GPS |
| Chipset | SiRF | |
| Outputs | LVDS | 800 × 480 |
| RGB | through sub-board | |
| Inputs | AV | 2 |
| Data | USB | USB 2.0 × 4 |
| OTG USB ×1 | ||
| Slot for memory card | SD/SDHC (up to 64 GB) | |
| General | Power | 12 V |
| Operating temperature | 0oC ~ +60oC |
The photo is provided for reference only. Appearance of the control panel and monitor may slightly differ depending on the car model.
Manuals
Package Content
- Q-ROI navigation box
- DSH sub-board
- PNL sub-board
- Connection cables
- GPS antenna
- External speaker
- External slot for SD card
- Microphone
- Wi-Fi dongle
Note! Navigation software, video interface, controllers are not included in the package.
Note! Navigation box installation shall be performed by well-trained specialist. Otherwise, we are not liable for equipment damage or incorrect operation.
