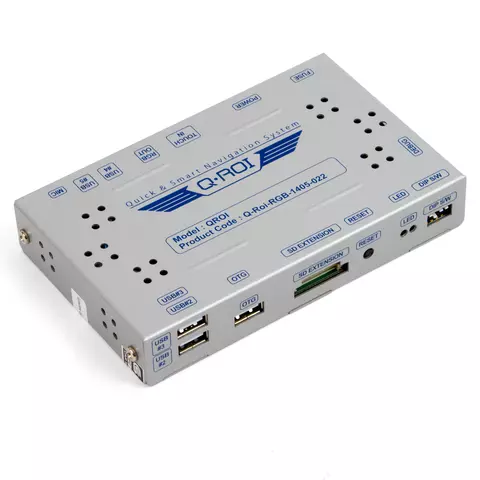

Q-ROI Navigation Box on Android for OEM Monitors
Q-ROI navigation box is designed to connect navigation to OEM monitors. You will need a video interface for installation. Navigation box works on Android 4.2.2 platform allowing you to expand the device functionality by various programs and application from Google Play.
If your monitor doesn't have an OEM touch screen, you can purchase an additional touch screen panel.
Note! If you have doubts whether this navigation box is compatible with your car, please contact our engineers from the technical department.
Why do you need a navigation box?
It's quite simple, really: it will help you to quickly get your bearings in an unfamiliar place and find an optimal route to your destination. All information and hints about the route will be on your car monitor. There's no need to connect a smartphone and spoil the look of your car with cables or dock station.
- Simple Plug&Play navigation connection to the OEM monitor
- Play media content
- Connect to Internet via 3G modem* or Wi-Fi
- USB inputs
- Navigation output resolution
*Note! 3G modem is not included in the package.
** Note! 400×234 resolution is only possible through the following video interfaces:
- Video interface for Mercedes-Benz
- Video interface for Audi with MMI
- Video interface for Audi without MMI
- Video interface for BMW
- Video interface for BMW of 2011 MY
- Video interface for Audi, Volkswagen, Skoda, Seat
|System||CPU||Telechips TCC8930 (1GHz Cortex A9 DualCore)|
|OS||Android 4.2.2 Jelly Bean|
|RAM||DDR 3 1 GB|
|ROM||8 GB eMMC|
||800 × 480|
|Data||USB||USB 2.0 × 4|
|OTG USB ×1|
|Slot for memory card||SD/SDHC (up to 64 GB)|
|Dimensions||147 mm × 92 mm × 26 mm|
- Q-ROI navigation box
- Connection cables
- Power cable
- Video cable
- Touch cables
- USB cable
- GPS antenna
- External speaker
- External slot for SD card
- Wi-Fi adapter
Note! Navigation software, touch screen panels, video interface, controllers, 3G modem are not included in the package.
Note! Navigation box installation shall be performed by well-trained specialist. Otherwise, we are not liable for equipment damage or incorrect operation.
|Navigation Box is compatible with|| |
|RAM size|| |
|Operation System|| |
|AV inputs|| |
|Processor frequency|| |
|ROM size|| |
|GPS Receiver|| |
|Bluetooth Connection|| |
|USB Ports|| |
|Wi-Fi Connection|| |
