Q-ROI Navigation System on Android for Infiniti Q50
when in stock
You may also like

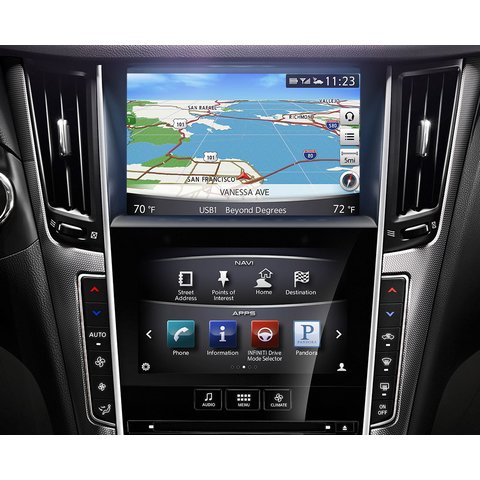

Q-ROI navigation system with inputs for connecting rear view cameras and other aftermarket video sources to Infiniti Q50 OEM monitors. Navigation system works on Android 4.2.2 platform allowing you to expand the device functionality by various programs and applications from Google Play.
Note! It is necessary to set "Q50" in "Factory Settings"–"Car model" in order for the navigation system to work. The settings password is 4291.
Features
- Aftermarket navigation on your OEM monitor
- Connect rear view camera
- Play media content
- USB inputs
- Easy Plug&Play installation
- Navigation output resolution
- 800×480
Q-ROI navigation system with inputs for connecting rear view cameras and other aftermarket video sources to Infiniti Q50 OEM monitors. Navigation system works on Android 4.2.2 platform allowing you to expand the device functionality by various programs and applications from Google Play.
Note! It is necessary to set "Q50" in "Factory Settings"–"Car model" in order for the navigation system to work. The settings password is 4291.
Features
- Aftermarket navigation on your OEM monitor
- Connect rear view camera
- Play media content
- USB inputs
- Easy Plug&Play installation
- Navigation output resolution
- 800×480
Technical Specifications
| System: | CPU | Telechips TCC8930 (1GHz Cortex A9 DualCore) |
| OS | Android 4.2.2 Jelly Bean | |
| RAM | DDR3 1 GB | |
| ROM | 8 GB eMMC | |
| Language | Multilingual | |
| GPS | Supported systems | GPS |
| Chipset | SiRF | |
| Outputs | RGB |
800 × 480 |
| LVDS | 1 | |
| Inputs |
AV | 3 |
| Rear view camera connection | 1 | |
| Data | USB | USB 2.0 × 4 |
| OTG USB ×1 | ||
| Slot for memory card | SDHC (up to 64 GB) | |
| General | Power | 12 V |
| Supported type of touch screen | Resistive |
Manuals
- Download user manual for Q-ROI navigation system
- Download installation manual for Q-ROI navigation system
Package Content
- Q-ROI navigation system

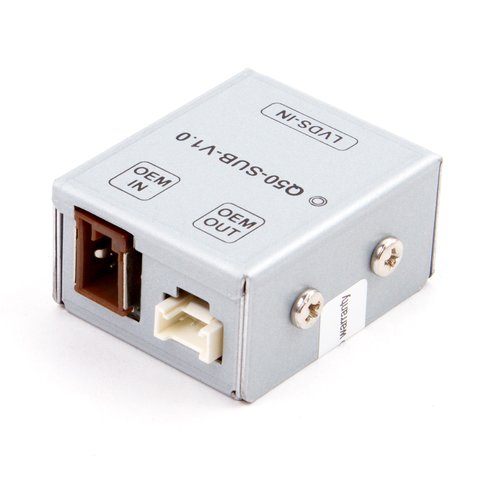

- Sub-board
- Connection cables
- Power cable
- LVDS cable
- TOUCH cable
- AV/BT cable
- Rear view camera cable
- Mode switch cable
- USB cable
- Microphone cable
- Multi cables
- GPS antenna
- External speaker
- Wi-Fi dongle (optional)
Note! Installation of the navigation system should be performed by a well-trained specialist. Otherwise, we are not liable for equipment damage or incorrect operation.
